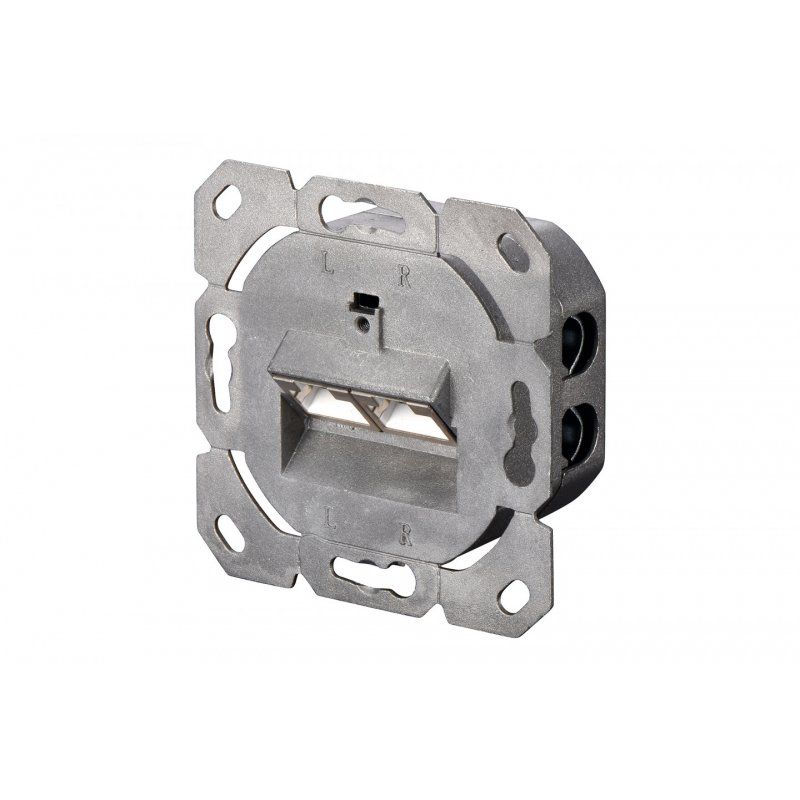

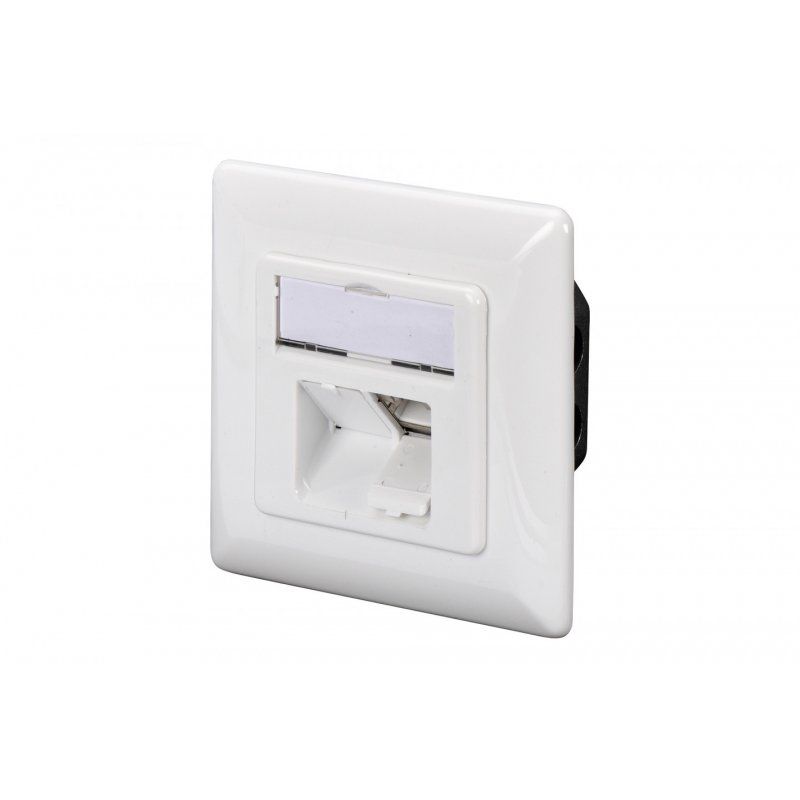

ASSMANN Digitus CAT 6A Class EA network outlet, design compatible, shielded, flush mount
Digitus CAT 6A Class EA network outlet, design compatible, shielded, flush mount, 2 x RJ-45, 1 module(s), 6a, 500 MΩ, White, -20 - 70 °C
DN-9008-1
4016032320227
€14.90
VAT included
Description
Digitus CAT 6A Class EA network outlet, design compatible, shielded, flush mount. Socket type: 2 x RJ-45, Modules quantity (max): 1 module(s), Networking cable category: 6a. Product colour: White. Width: 80 mm, Height: 80 mm. Country of origin: China
- Transmission property: Category 6A
- Area of application: Up to 500 MHz, 10GBase-T
- Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
- General properties:
- Suitable for installation in trunking, surface and flush mount
- RJ45 female, 8P8C

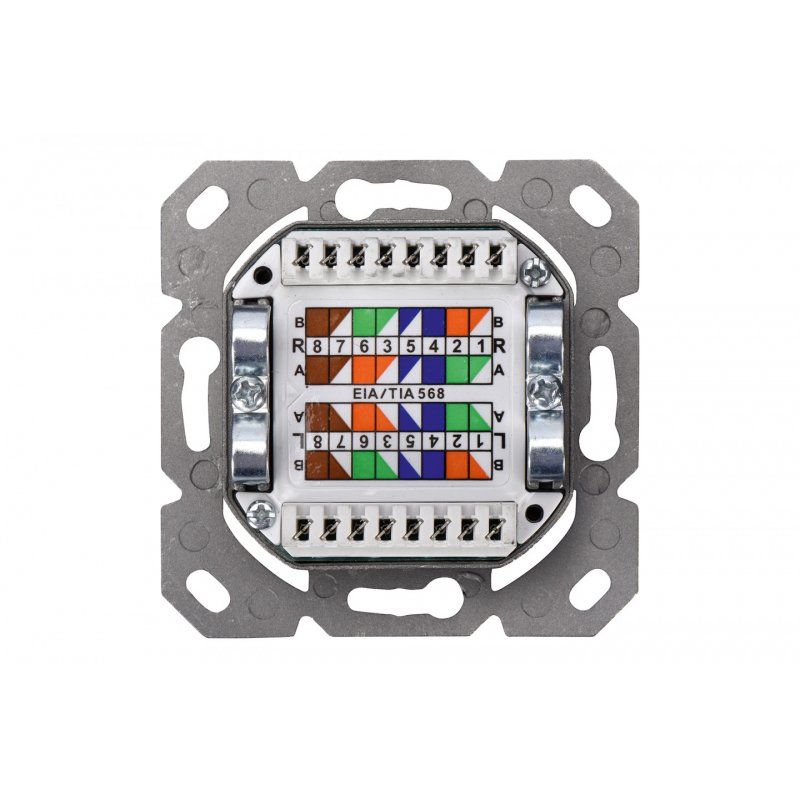

- Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
- Integrated strain relief for installation cables

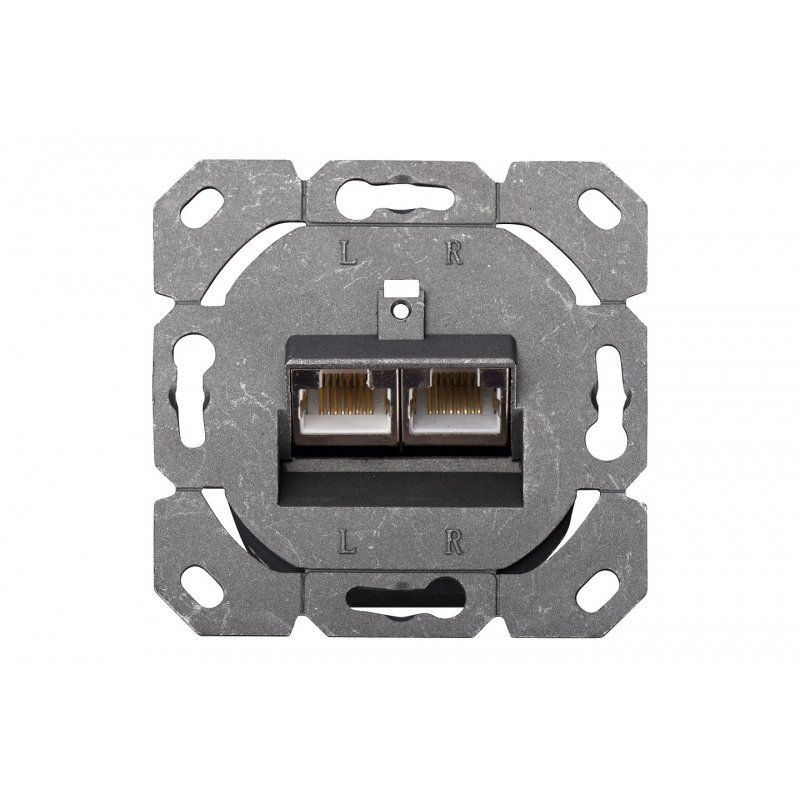

- Complete shielding of RJ45 sockets and LSA strips due to zinc die-cast housing
- Strain relief 40°-angled female for patch cord
- Central plate: 50 x 50 mm
- Frame: 80 x 80 mm

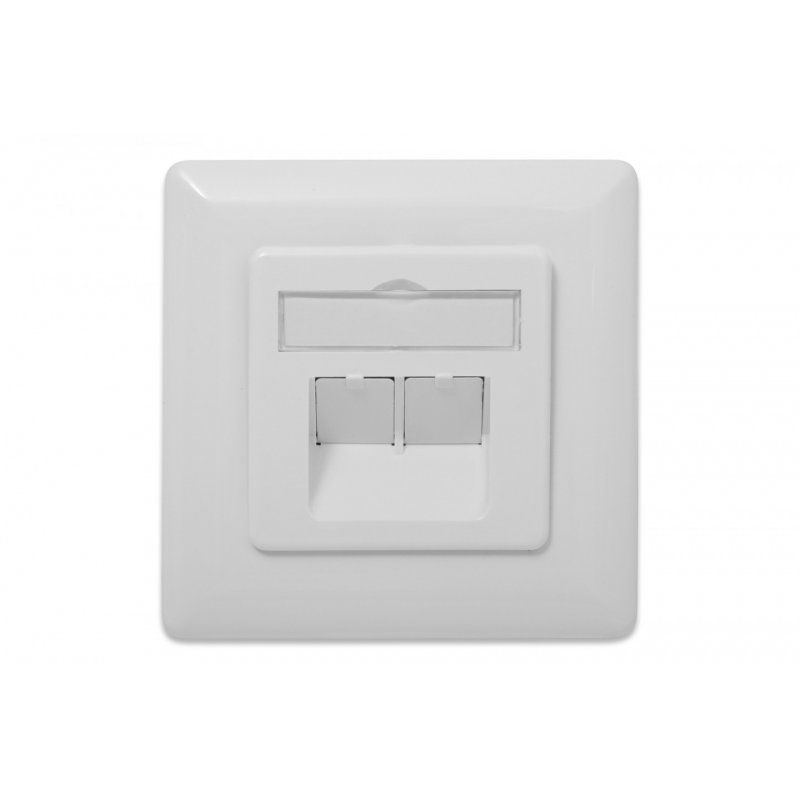

- Central plate with integrated dust covers
- Design compatible to common switch ranges
- Technical properties:
- Housing material: Die-cast metal
- RJ45 female material: ABS UL 94V-0
- RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
- RJ45 shielding: Tinned bronze
- LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
- Conductor plate: FR4, UL 94V-0
- Physical properties:
- Insertion force: 30N max. (IEC 60603-7-5)
- Retention strength: 7.7 kg between jack and plug
- Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
- Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
- Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
- IDC wire size: 22 – 26 AWG solid and stranded conductor
- Insulation resistance: > 500 MOhm
- Contact resistance: < 20 MilliOhm
- Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
- Not compatible with R&M freenet patch cords
- Colour: White RAL9003
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Assmann
- Modèle
- DN-9008-1
- Weight
- 1
Specific References
- ean13
- 4016032320227
