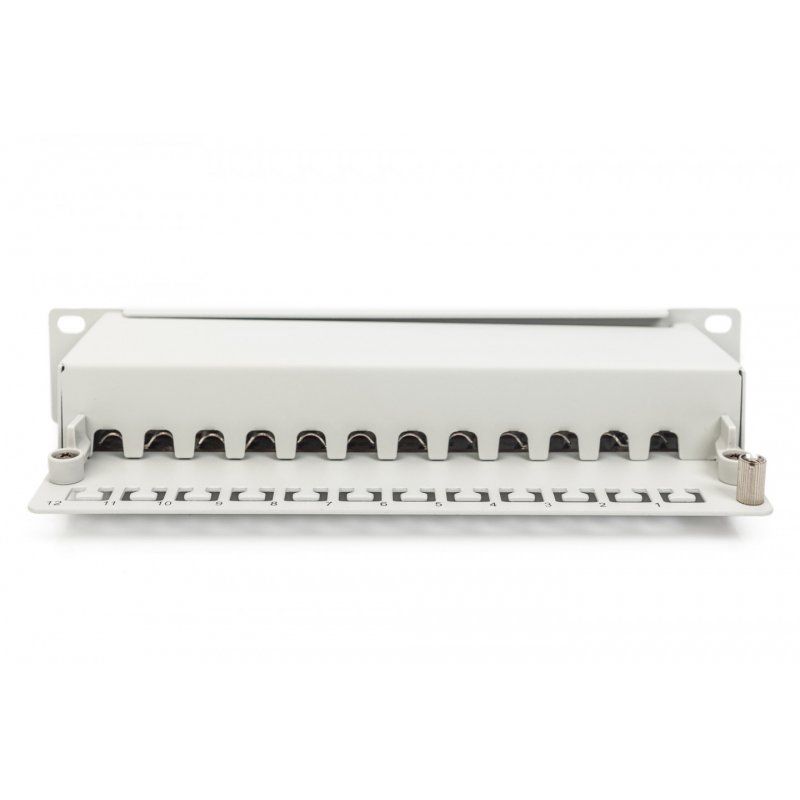

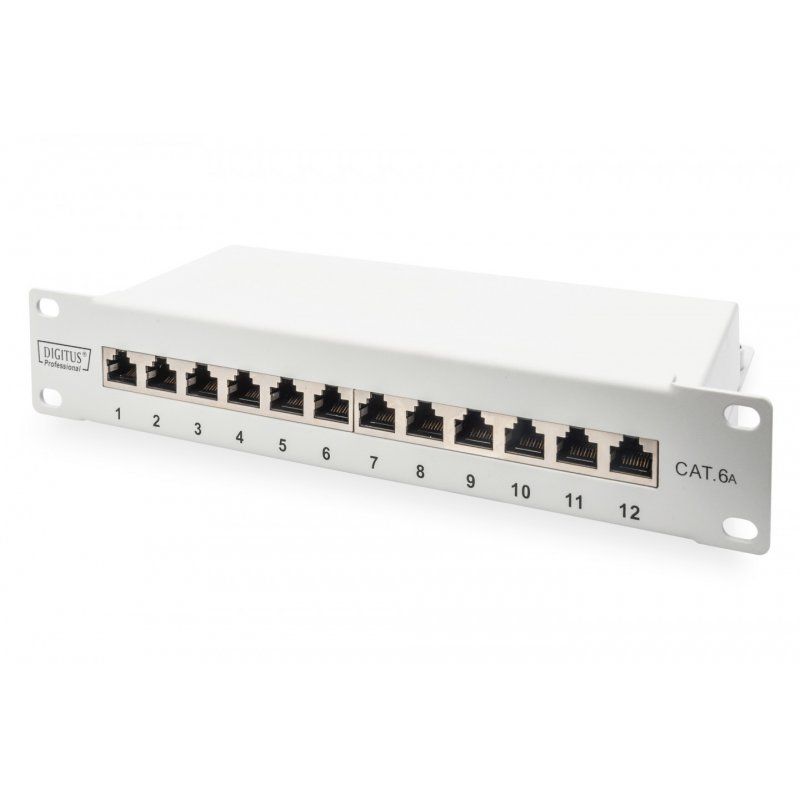

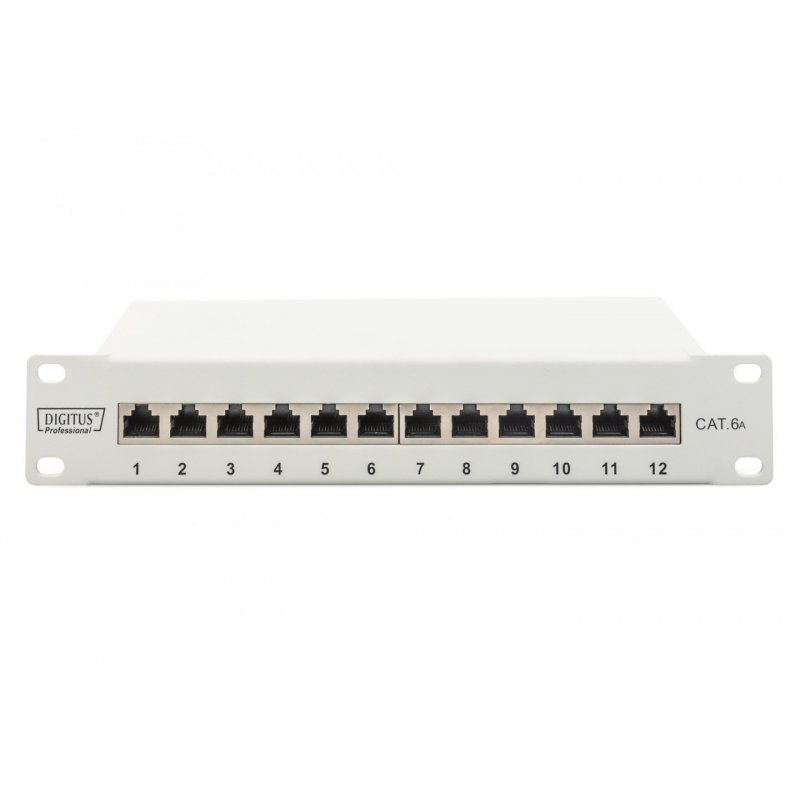

ASSMANN Digitus CAT 6A Patch Panel, shielded, 12-Port, 1HE, 10", grey
Digitus CAT 6A Patch Panel, shielded, 12-Port, 1HE, 10", grey, 10 Gigabit Ethernet, RJ-45, Cat6a, 22/26, Grey, Metal
DN-91612S-EA-G
4016032454878
€29.90
VAT included
Description
Digitus CAT 6A Patch Panel, shielded, 12-Port, 1HE, 10", grey. Ethernet interface type: 10 Gigabit Ethernet, Connector(s): RJ-45, Cable types supported: Cat6a. Product colour: Grey, Material: Metal, Mounting: Rack mounting. Package width: 60 mm, Package depth: 260 mm, Package weight: 890 g. Country of origin: China
- Transmission properties: Category 6A, Class EA
- Area of application: Up to 500 MHz, 10GBase-T
- Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
- Suitable for surface mount installation
- RJ45 female, 12P12C

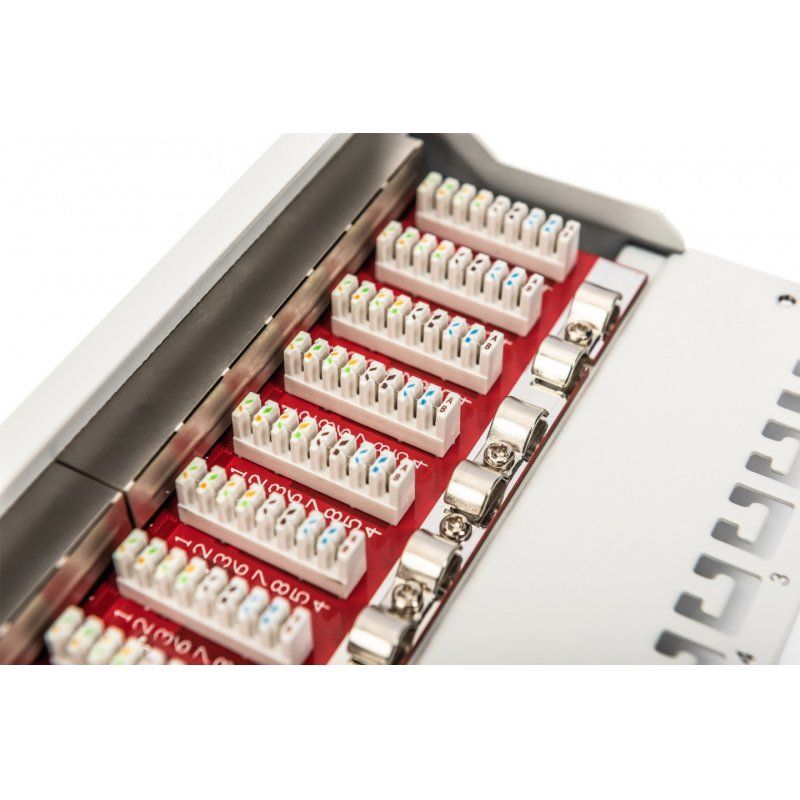

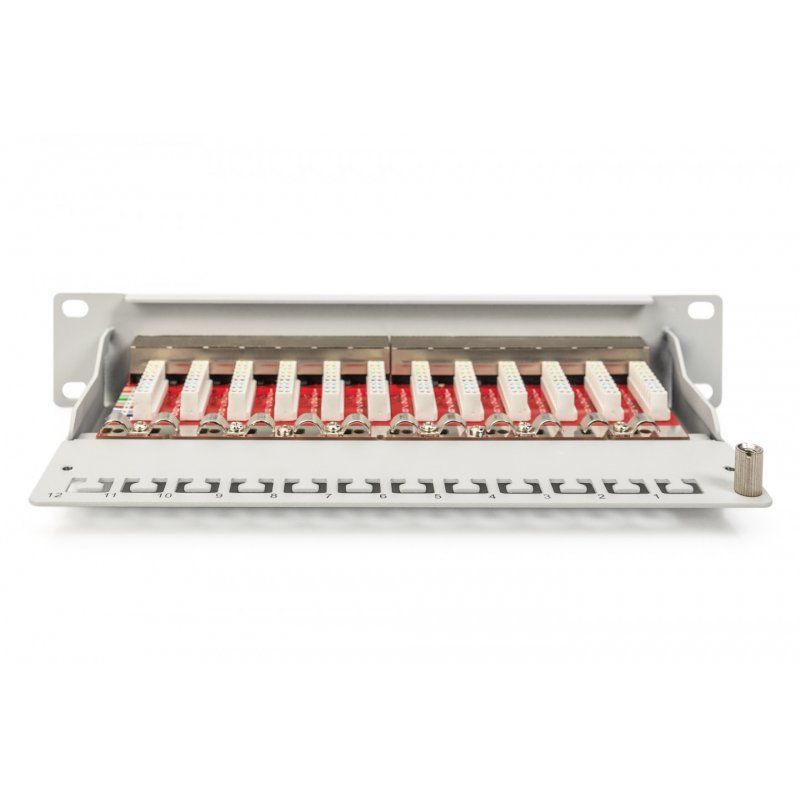

- Cable installation via IDC strips, color coded according to EIA/TIA 568 A & B
- Cable fixing with cable ties
- Central ground connection
- 360° shield coverage
- Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
- RJ45 female material: ABS UL 94V-0
- RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
- RJ45 shielding: Tinned bronze
- IDC termination clamp: Krone IDC+, UL 94V-2, zinc plated phosphor bronze
- Ground wire: Not included
- Conductor plate: FR4, UL 94V-0
- Insertion force: 30N max. (IEC 60603-7-5)
- Retention strength: 7.7 kg between jack and plug
- Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
- Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
- Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
- Insulation resistance: > 500 MOhm
- Contact resistance: < 20 MilliOhm
- Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
- Color grey (RAL 7035)
- Category: Cat.6A
- Ports: 12
- Units: 1
- IDC wire size: 22 – 26 AWG solid and stranded conductor
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Assmann
- Modèle
- DN-91612S-EA-G
- Weight
- 1
Specific References
- ean13
- 4016032454878
