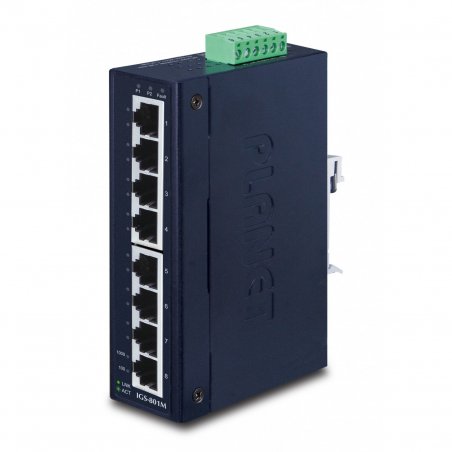

ASSMANN PLANET IGS-801M network switch Managed L2/L4 Gigabit Ethernet (10/100/1000) 1U Blue
PLANET IGS-801M, Managed, L2/L4, Gigabit Ethernet (10/100/1000), Rack mounting, 1U, Wall mountable
IGS-801M
4711213687266
€299.90
VAT included
Description
PLANET IGS-801M. Switch type: Managed, Switch layer: L2/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Wall mountable, Rack mounting, Form factor: 1U
- Physical Port
- 8-Port 10/100/1000BASE-T RJ45 copper
- Industrial Case/Installation
- IP30 metal case protection
- DIN-rail and wall mount design
- Redundant power design
- 12 to 48V DC, redundant power with polarity reverse protect function
- AC 24V power adapter acceptable
- Supports EFT 6000VDC protection for power line
- Supports 6000VDC Ethernet ESD protection
- 40 to 75 degrees C operating temperature
- Layer 2 Features
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
- Supports VLAN
- IEEE 802.1Q tagged VLAN
- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
- Protocol VLAN
- Voice VLAN
- Private VLAN
- Management VLAN
- GVRP
- Supports Spanning Tree Protocol
- STP (Spanning Tree Protocol)
- RSTP (Rapid Spanning Tree Protocol)
- MSTP (Multiple Spanning Tree Protocol)
- STP BPDU Guard, BPDU filtering and BPDU forwarding
- Supports Link Aggregation
- IEEE 802.3ad Link Aggregation Control Protocol (LACP)
- Cisco ether-channel (static trunk)
- Provides port mirror (many-to-1)
- Loop protection to avoid broadcast loops
- Quality of Service
- Ingress and egress rate limit per port bandwidth control
- Storm control support
- Broadcast/Unknown unicast/Unknown multicast
- Traffic classification
- IEEE 802.1p CoS
- TOS/DSCP/IP precedence of IPv4/IPv6 packets
- Strict priority and Weighted Round Robin (WRR) CoS policies
- Multicast
- Supports IPv4 IGMP snooping v2 and v3
- Supports IPv6 MLD snooping v1, v2
- IGMP querier mode support
- IGMP snooping port filtering
- MLD snooping port filtering
- Security
- Authentication
- IEEE 802.1X port-based network access authentication
- Built-in RADIUS client to co-operate with the RADIUS servers
- RADIUS/TACACS+ login user access authentication
- Access control list
- IPv4/IPv6 IP-based ACL
- MAC-based ACL
- MAC security
- Static MAC
- MAC filtering
- Port security for source MAC address entries filtering
- DHCP snooping to filter distrusted DHCP messages
- Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
- IP source guard prevents IP spoofing attacks
- DoS attack prevention
- SSH/SSL
- Management
- IPv4 and IPv6 dual stack management
- Switch management interface
- Web switch management
- Telnet command line interface
- SNMP v1, v2c and v3
- SSH and SSL secure access
- User privilege levels control
- Built-in Trivial File Transfer Protocol (TFTP) client
- BOOTP and DHCP for IP address assignment
- System maintenance
- Firmware upload/download via HTTP/TFTP
- Configuration upload/download through web interface
- Dual images
- Hardware reset button for system reboot or reset to factory default
- SNTP Network Time Protocol
- Cable diagnostics
- Link Layer Discovery Protocol (LLDP) and LLDP-MED
- SNMP trap for interface link up and link down notification
- Event message logging to remote Syslog server
- Four RMON groups (history, statistics, alarms and events)
- PLANET smart discovery utility
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Assmann
- Modèle
- IGS-801M
- Weight
- 1
Specific References
- ean13
- 4711213687266
