ASSMANN Digitus OnLine UPS system, 10 kVA/ 10 kW
Digitus OnLine UPS system, 10 kVA/ 10 kW, Double-conversion (Online), 6 kVA, 10000 W, Pure sine, 120 V, 276 V
DN-170107
4016032473558
€1,758.90
VAT included
Description

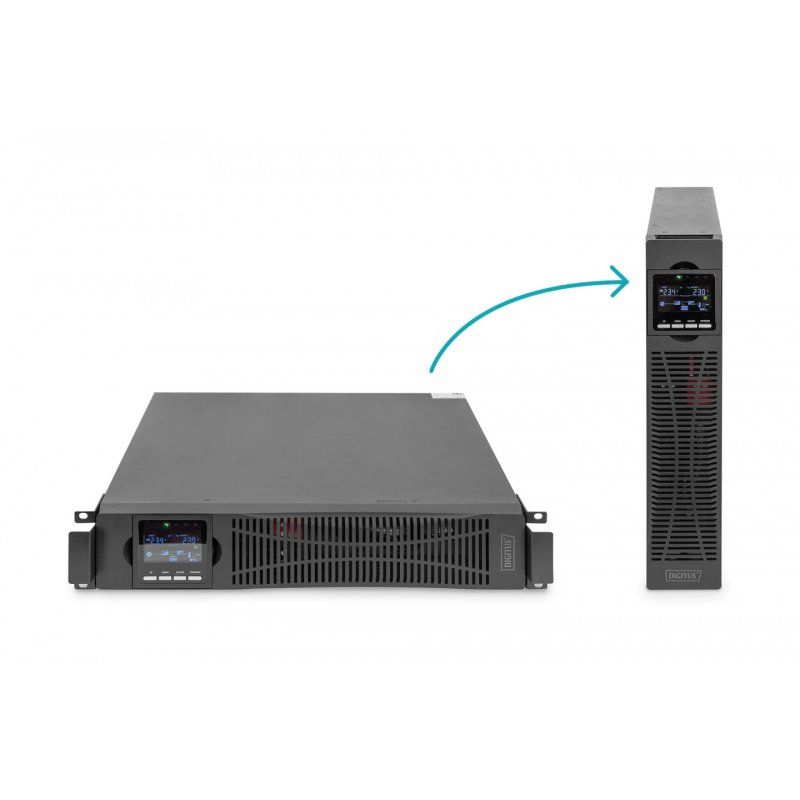

Digitus OnLine UPS system, 10 kVA/ 10 kW. UPS topology: Double-conversion (Online), Output power capacity: 6 kVA, Output power: 10000 W. Power plug: Hardwire, USB port type: USB Type-B. Battery recharge time: 8 h, Charging current: 1 A. Form factor: Rackmount/Tower, Product colour: Black, Housing material: Metal. Width: 440 mm, Depth: 620 mm, Height: 86.5 mm
- Online double conversion system (VFI-SS-111)
- Input: Input terminals / hard wiring
- Output: Output terminals / hard wiring
- System power rating: 10 kVA / 10 kW, power factor 1.0
- AC-AC (online VFI) efficiency: 94 %, ECO mode efficiency: 97 %.
- No internal battery. External battery module: DN-170108. Up to 4 ECB can be connected.
- Network connection: Optional SNMP/Webcard (part number DN-170100) allows remote monitoring of the UPS.
- Optional relay card (part number DN-xxxxx) with potential free inputs and outputs (Bypass, UPS ON, AC error, Batt low, UPS alarm)

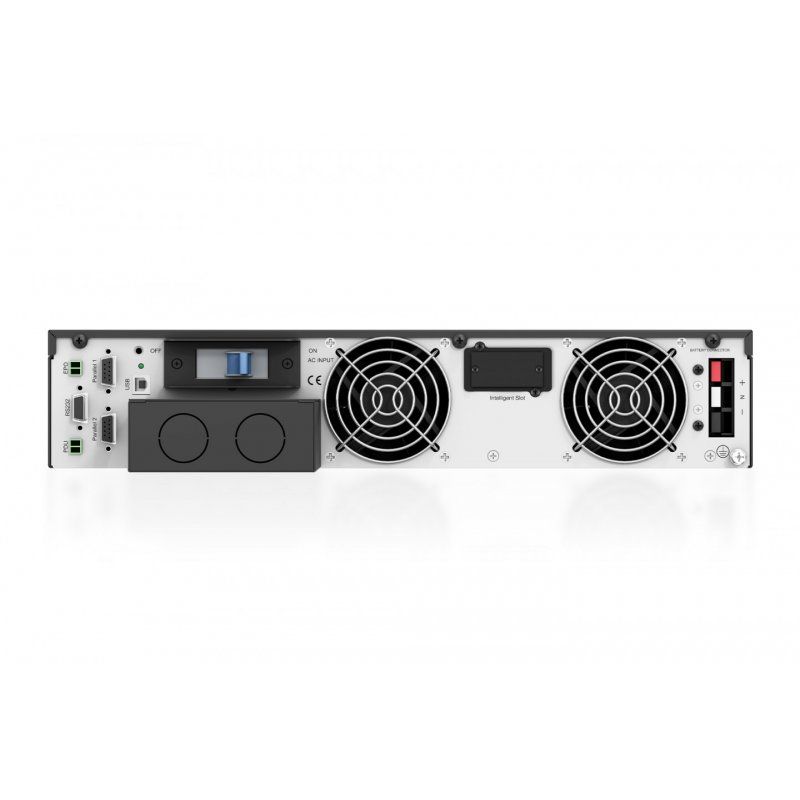

- Local communication ports: USB, RS-232 (serial), SNMP card (optional), relay card (optional)
- Emergency power-off (EPO) contact for UPS shutdown in case of emergency
- Maximum operating temperature: 0 - 40 °C
- Storage temperature: -25 - 55 °C
- Relative humidity: 20 - 90% non-condensing
- Operating altitude: < 1500 m
- Product dimensions WxDxH (mm): 440 (19") x 620 x 86.5 (2U)
- Product weight: 15,8 kg
- Shipping dimensions WxDxH (mm): 615 x 765 x 214
- Shipping weight: 20,9 kg
- Safety standards: IEC/EN62040-1,IEC/EN60950-1
- EMC standards: IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5,IEC61000-4-6,IEC61000-4-8
- Approval: CE declaration
- Scope of delivery: UPS unit (with out internal battery), feet for tower installation, UPS manual, UPS QSG, UPS software license, USB cable, 19" installation brackets
- Optional available: 19" UPS mounting kit (profile rails), part number DN-170109
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Assmann
- Modèle
- DN-170107
- Weight
- 1
Specific References
- ean13
- 4016032473558
