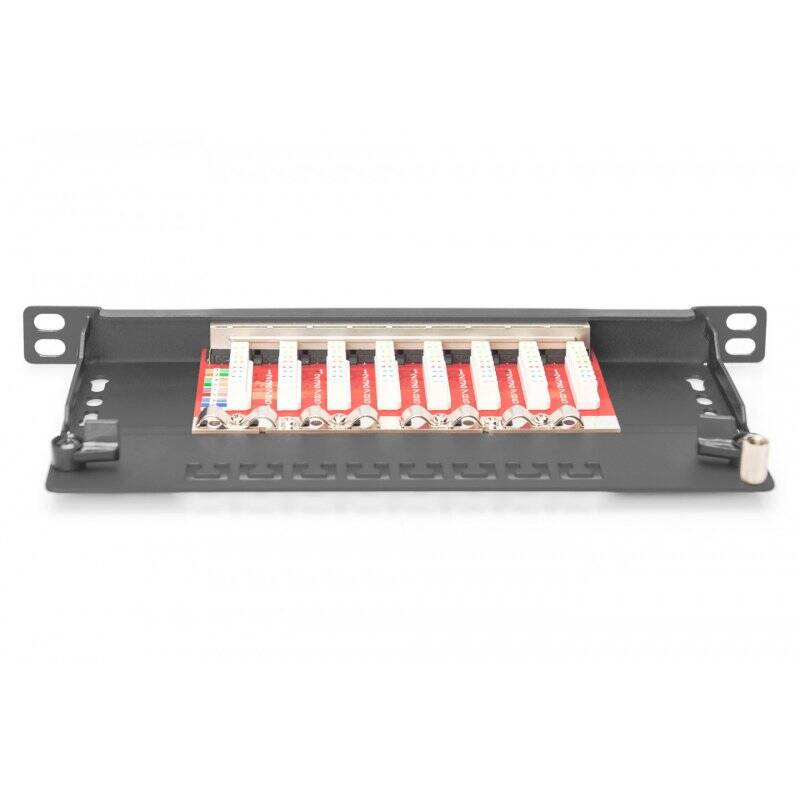

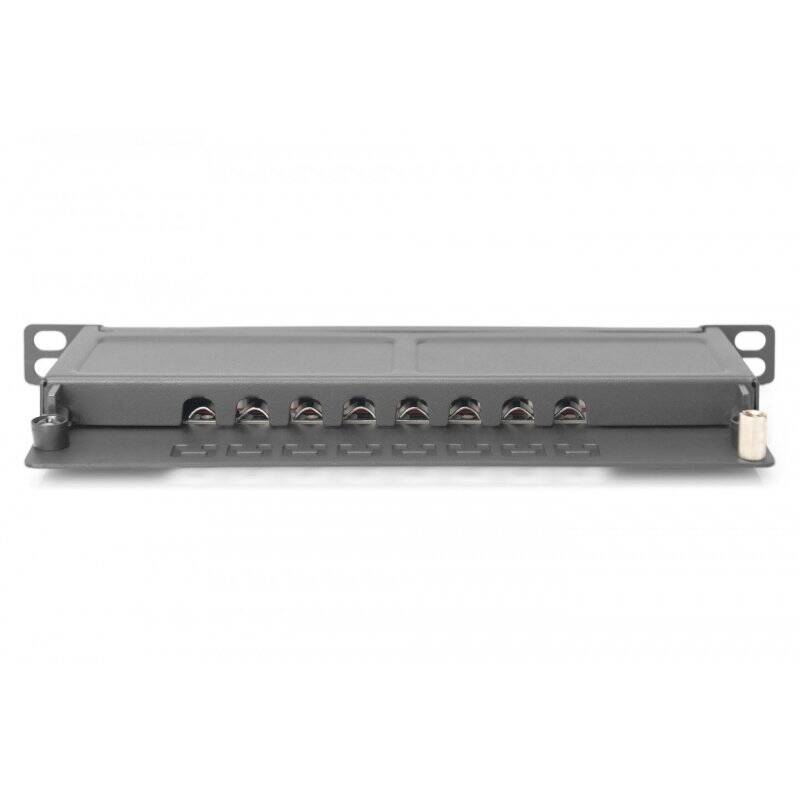

Digitus Digitus CAT 6A Patch Panel, shielded, 8-port, 0.5U, 10", black

Digitus CAT 6A Patch Panel, shielded, 8-port, 0.5U, 10", black, 10GBase-T, 10 Gigabit Ethernet, 10000 Mbit/s, RJ-45, Cat6a, 22/26
DN-91608S-SL-EA
4016032473169
€24.90
VAT included

Visa
Mastercard
PayPal

Description

Digitus CAT 6A Patch Panel, shielded, 8-port, 0.5U, 10", black. Cabling technology: 10GBase-T, Ethernet interface type: 10 Gigabit Ethernet, Maximum data transfer rate: 10000 Mbit/s. Product colour: Black, Mounting: Rack mounting, Rack capacity: 1U. Package width: 60 mm, Package depth: 260 mm, Package height: 120 mm. Country of origin: China
  • Transmission properties: Category 6A, Class EA
  • Area of application: Up to 500 MHz, 10GBase-T
  • Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
  • Suitable for 254 mm (10") cabinet mounting
  • RJ45 female, 8P8C
  • Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
  • Cable fixing with smart cable ties
  • Central ground connection
  • 360° shield coverage
  • Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
  • RJ45 female material: ABS UL 94V-0
  • RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
  • RJ45 shielding: Tinned bronze
  • IDC termination clamp: IDC+, UL 94V-0, zinc plated phosphor bronze
  • Conductor plate: FR4, UL 94V-0
  • Insertion force: 30N max. (IEC 60603-7-5)
  • Retention strength: 7.7 kg between jack and plug
  • Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
  • Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
  • Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
  • IDC wire size: 22 – 26 AWG solid and stranded conductor
  • Insulation resistance: > 500 MOhm
  • Contact resistance: < 20 MilliOhm
  • Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
  • Ground wire: Not included
  • Colour: Black RAL9005

Data sheet

Colour
Black
Garantie
2 ans
Modèle
DN-91608S-SL-EA
Weight
1

Specific References

ean13
4016032473169
