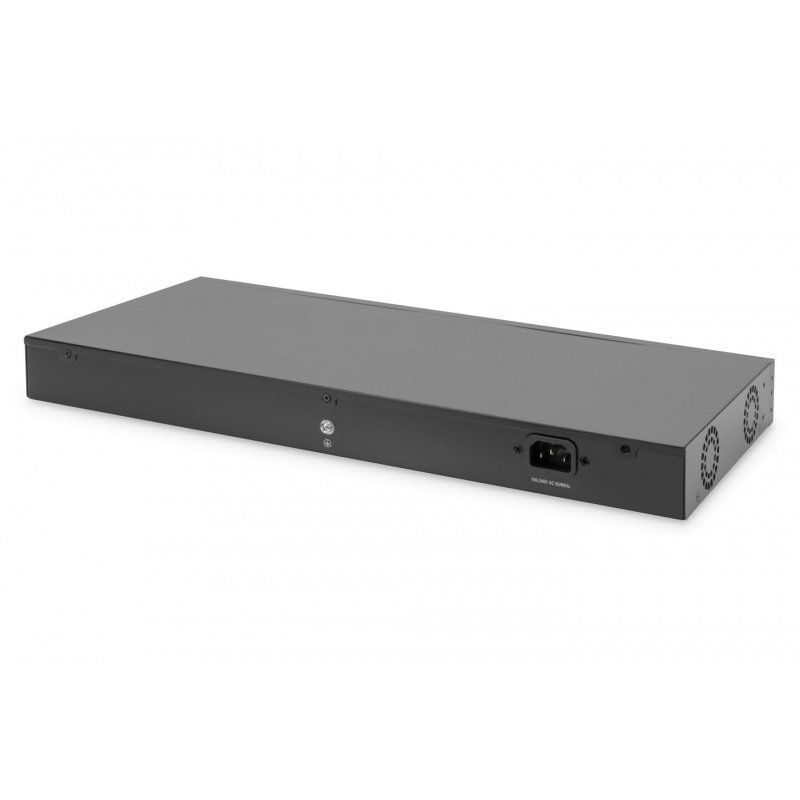

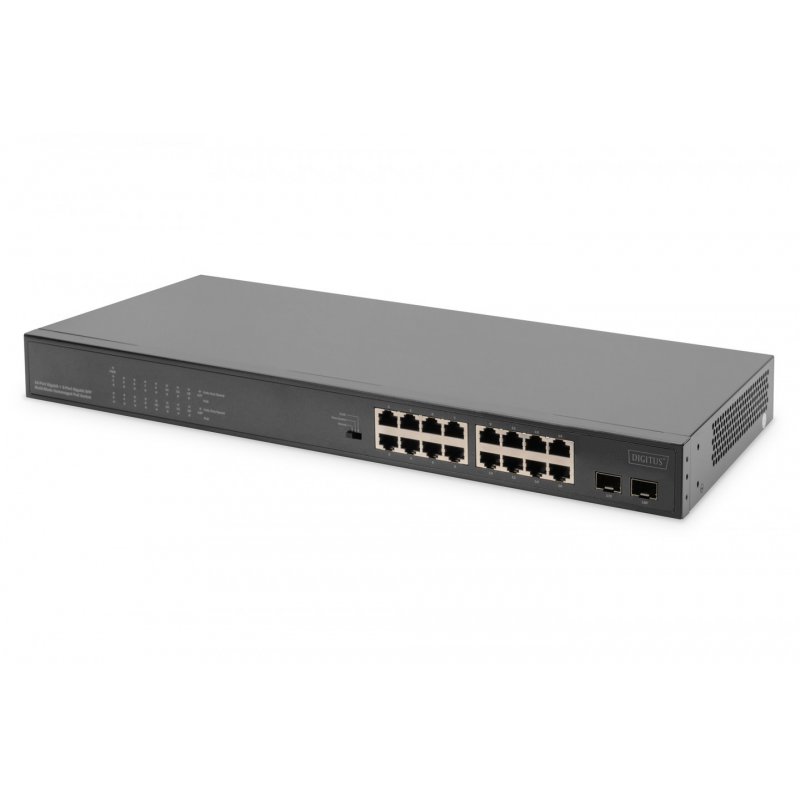

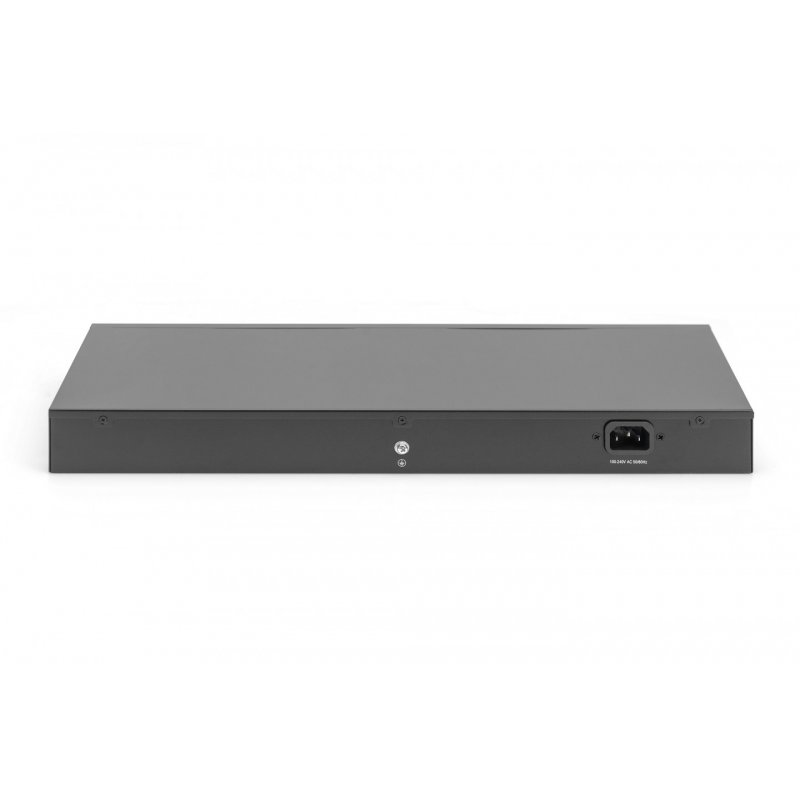

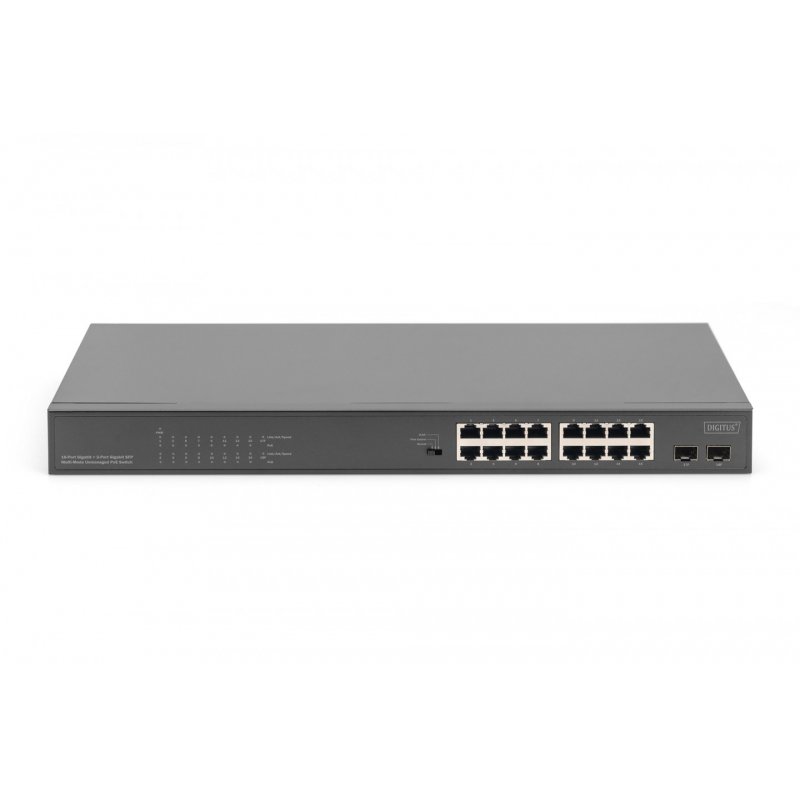

Digitus Digitus 16 Port Gigabit PoE Switch, 19 Inch, Unmanaged, 2 SFP Uplink

Digitus 16 Port Gigabit PoE Switch, 19 Inch, Unmanaged, 2 SFP Uplink, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U
DN-95347-1
4016032480853
€373.90
VAT included

Visa
Mastercard
PayPal

Description

Digitus 16 Port Gigabit PoE Switch, 19 Inch, Unmanaged, 2 SFP Uplink. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16, Installed SFP modules quantity: 2. Full duplex. MAC address table: 8000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE.... Power connector: AC-in jack. Rack mounting, Form factor: 1U
  • Comply with IEEE 802.3i, IEEE 802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3az standards
  • Support IEEE802.3af, IEEE802.3at standards
  • Supporting Normal mode, VLAN mode and Extend mode, flexible to switch
  • The maximum output power of a single port is 30W, and the total output power of PoE is 247W
  • Flow control method: Full-duplex adopts IEEE 802.3x standard, half-duplex adopts Backpressure standard
  • Support MAC address self-learning
  • 16 x 10/100 /1000 Mbps self-adaptive RJ45 ports, support port auto flip (Auto MDI / MDIX)
  • The UTP port supports the auto-negotiation function and automatically adjusts the transmission mode and transmission rate
  • Use store-and-forward architecture
  • Backplane: 36Gbps
  • Packet forwarding rate: 26.784Mbps
  • Packet Cache: 4.1Mbit
  • Mac address table: 8K
  • Jumbo frame: 10K Bytes
  • LED indicators for monitoring power, link/activity
  • Working Mode-Normal mode: Enable Flow Control and all ports can communicate with each other.
  • Working Mode-Flow Control mode: Disable Flow Control and all ports can communicate with each other.
  • Working Mode-VLAN mode: Port 1-16 cannot communicate with each other, but can communicate with the uplink port 17F-18F.
  • Power supply: AC 100-240V 50 / 60Hz Built-in power
  • Power consumption: Max (full load on the port): 297W (220V / 50Hz)
  • Dimensions: 440 * 240 * 44mm

Data sheet

Colour
Black
Garantie
2 ans
Modèle
DN-95347-1
Weight
1

Specific References

ean13
4016032480853
