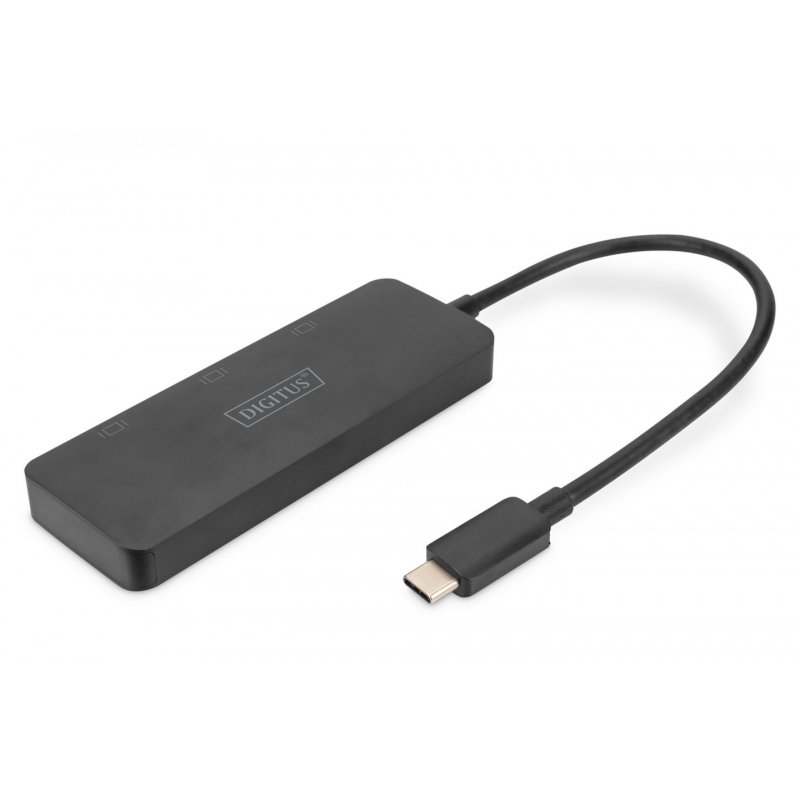

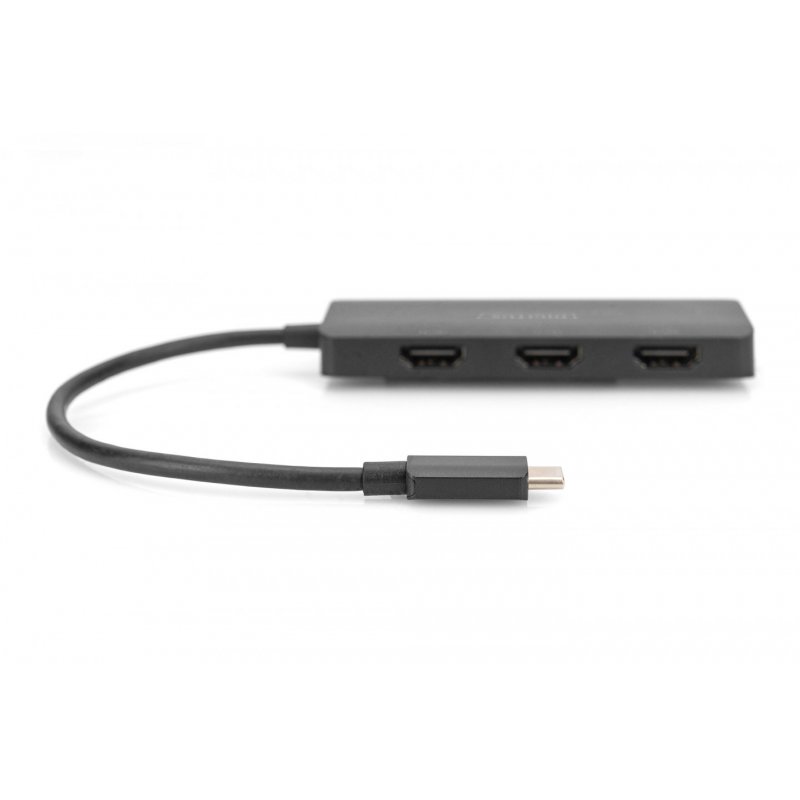

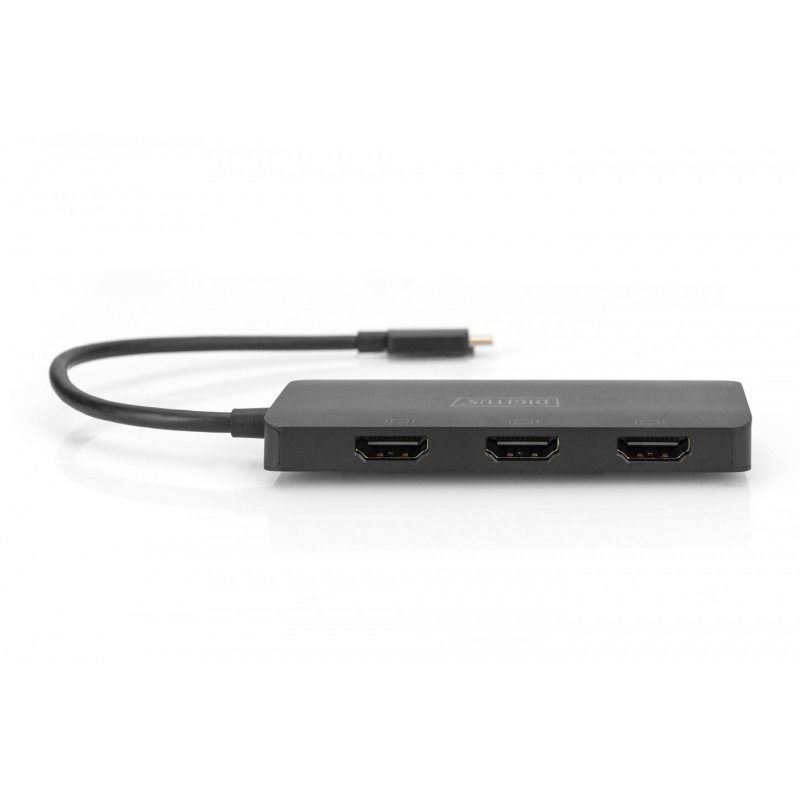

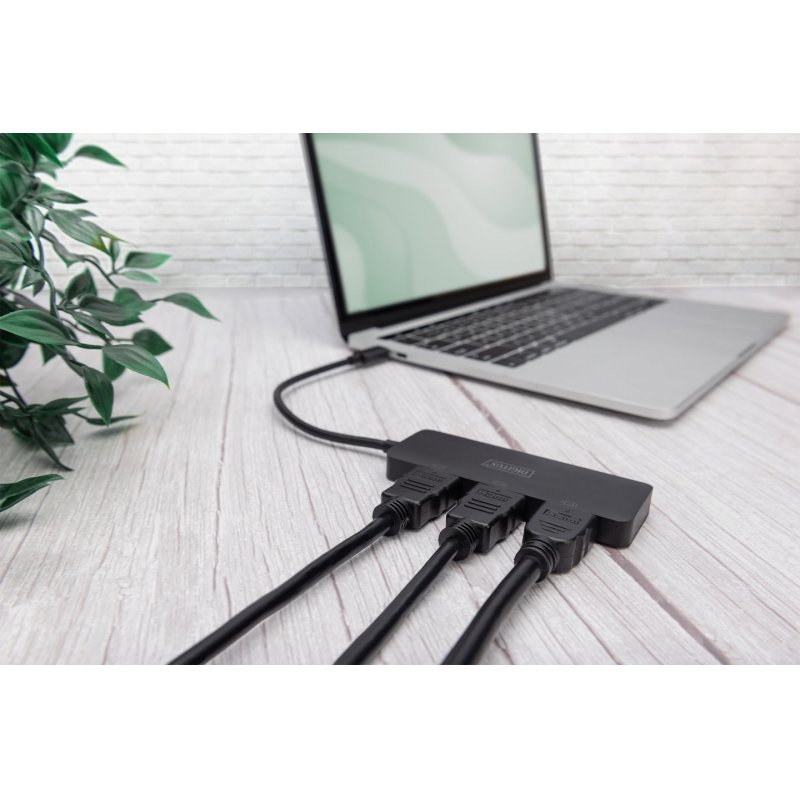

Digitus Digitus 3-Port MST Video Hub (USB-C™ - 3x HDMI)

Digitus 3-Port MST Video Hub (USB-C™ -> 3x HDMI), HDMI, 3x HDMI, 3840 x 2160 pixels, Black, Acrylonitrile butadiene styrene (ABS), 4K Ultra HD
DS-45333
4016032481751
€49.90
VAT included

Visa
Mastercard
PayPal

Description

Digitus 3-Port MST Video Hub (USB-C™ -> 3x HDMI). Video port type: HDMI, Video out: 3x HDMI. Maximum resolution: 3840 x 2160 pixels, Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS). Power consumption (standby): 1 W. Width: 36 mm, Depth: 263 mm, Height: 11.5 mm. Quantity per pack: 1 pc(s), Package width: 80 mm, Package depth: 160 mm
  • 1x USB-C™ input
  • 3x HDMI output
  • Supports DP 1.4 (Alt mode) with maximum 8.1 Gbps per channel, max. 32.4 Gbps on 4 channels
  • Supports Windows OS (11, 10)
  • Resolutions 3 external monitors - MST mode: max. 1x 4K/60Hz + 2x 4K/30Hz
  • Resolutions 2 external monitors - MST mode: max. 2x 4K/60Hz
  • Power supply via a USB-C™ connection - BUS powered
  • No driver or software required - Configuration via the display settings in Windows OS
  • Supports 3 display modes: Mirror (1 signal mirrored on 3 displays), extend (3 signals on 3 displays), distribute (1 signal distributed across 3 displays)
  • HDCP 2.2 & 1.4
  • Supports HDR (High Dynamic Range)
  • Supports MST (Multi Stream Transport) & SST - Single Stream Transport
  • Housing: ABS
  • Operating temperature: 0-45 °
  • Standby power consumption: approx. 1W
  • Dimensions: L 26.3 x W 3.6 x H 1.15 cm
  • Weight: 55 g
  • Color: Black
  • Note:
  • To achieve the resolutions stated above, the host PC should support DP 1.4 (Alt mode). If your PC only supports DP 1.2, the corresponding resolutions are reduced due to the bandwidth restriction
  • The resolution combinations stated above are a theoretical reference, the actual resolutions depend from the connected host PC as well as the display
  • In order to use the full scope of features, make sure that your device (graphics card) uses DP 1.4
  • If you use a DisplayPort 1.1 graphics card, the MST Hub acts as a splitter and mirrors your video source on all displays
  • Functionality can be restricted depending on the specifications of your device and operating system
  • MST Hubs cannot increase the number of screens supported by a graphics card. Every graphics card has a limited number of screens that it can support. Please check your specifications in advance
  • Requires at least a host system with DP 1.2/HBR2/MST or higher (recommended)
  • Supports AMD, Nvidia and Intel graphics cards

Data sheet

Colour
Black
Garantie
2 ans
Modèle
DS-45333
Weight
1

Specific References

ean13
4016032481751
