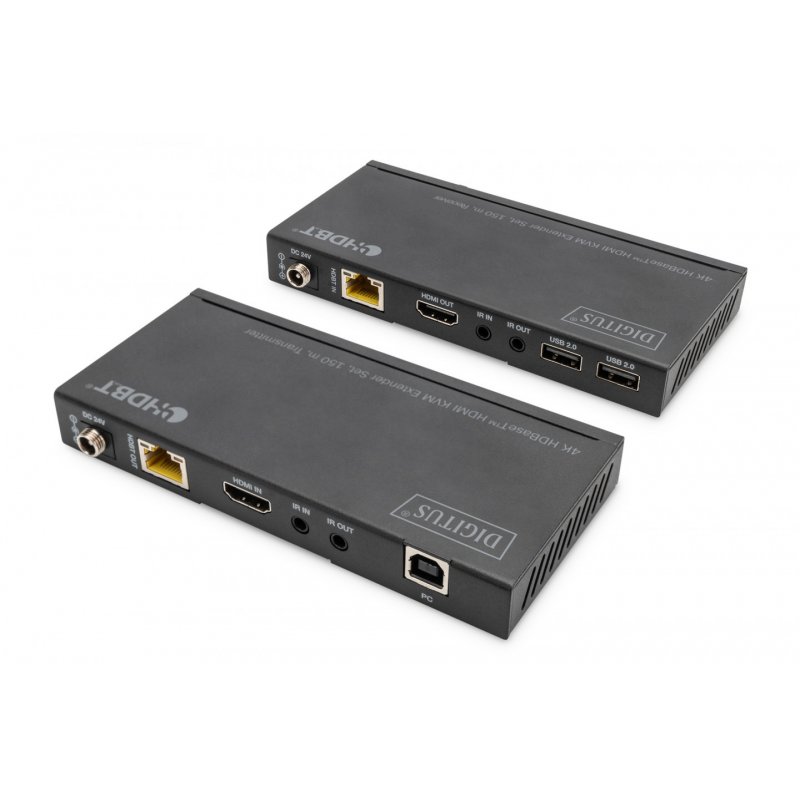

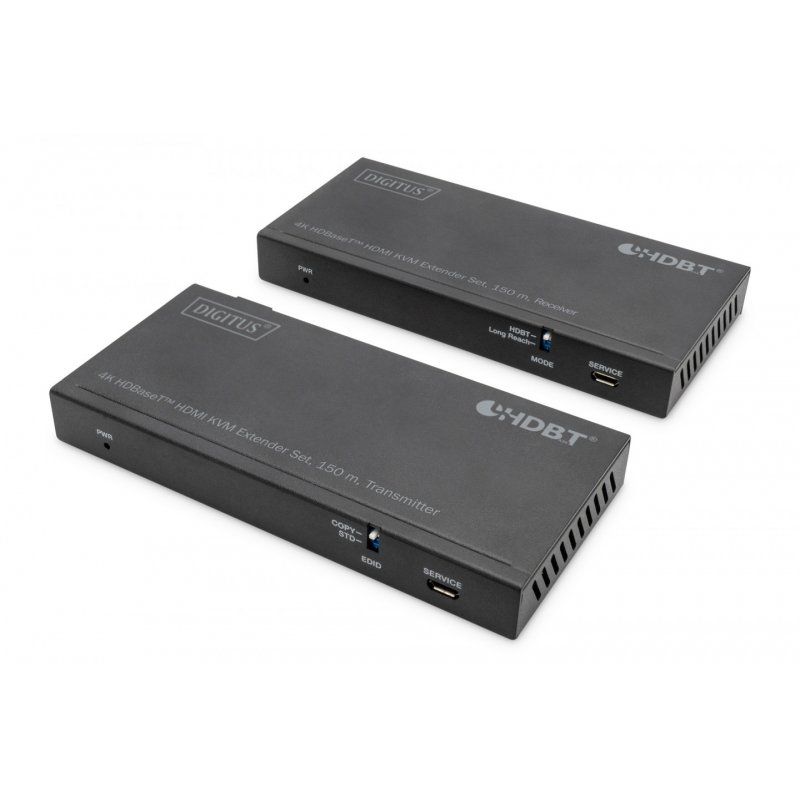

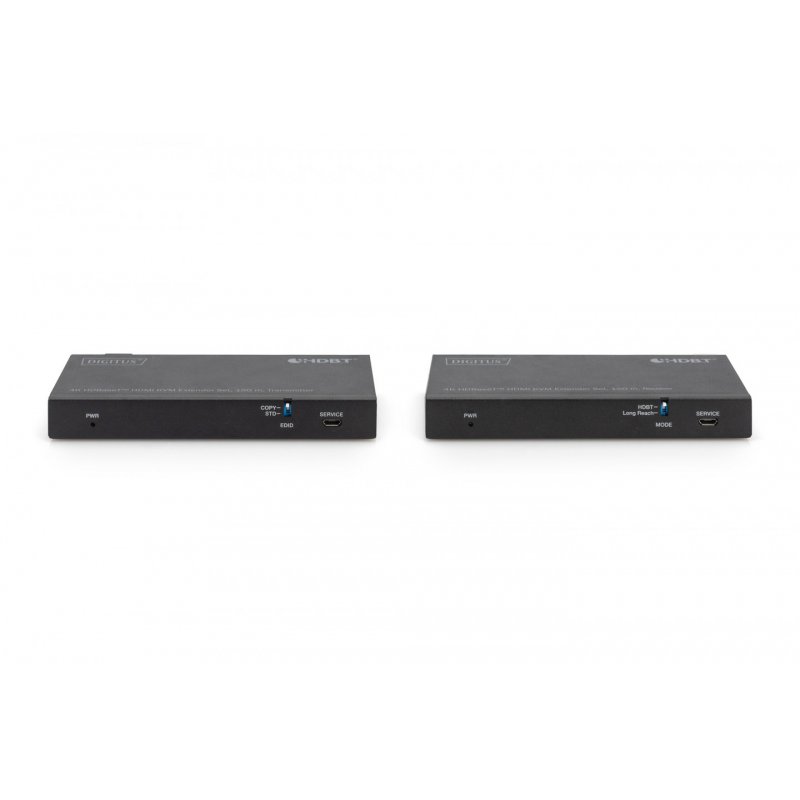

Digitus Digitus 4K HDBaseT™ HDMI KVM Extender Set, 150 m

Digitus 4K HDBaseT™ HDMI KVM Extender Set, 150 m, Transmitter & receiver, Wired, 150 m, Cat6a, Cat7, Cat8, 60 Hz, Black
DS-55526
4016032483724
€422.90
VAT included

Visa
Mastercard
PayPal

Description

Digitus 4K HDBaseT™ HDMI KVM Extender Set, 150 m. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 150 m. Transmitter video port type: HDMI, Transmitter local keyboard/mouse port type: USB. Receiver local video port type: HDMI, Receiver local keyboard/mouse port type: USB. AC adapter output voltage: 24 V, AC adapter output current: 1 A, Power consumption (transmitter) (max): 13.2 W. Transmitter width: 14 cm, Transmitter depth: 6.5 cm, Transmitter height: 1.8 cm
  • Supports HDBaseT™ 1.0 via CAT6A/7/8 cable up to 100 m
  • Transmission distance - Full HD (1080p/60Hz): 150 m (max.)
  • Transmission distance - UHD (4K/60Hz): 120 m (max.)
  • Supports 4K2K/60Hz (4:4:4)
  • Video bandwidth: 18 Gbps
  • HDMI 2.0b / HDCP 2.2
  • USB 2.0
  • 2x USB 2.0 ports on receiver for connection of webcam, data carrier, mouse and keyboard, for example.
  • Touch display support / Touch panel back control
  • HDR, HDR10, HDR10+, DolbyVision, HLG
  • PoC (Power over Cable) - Only the unit requires an external power adapter
  • EDID support (2 modes) - 1: Copy - HDMI output receiver / 2: Standard - 1080p, 2 channel
  • Bi-directional IR signal transmission

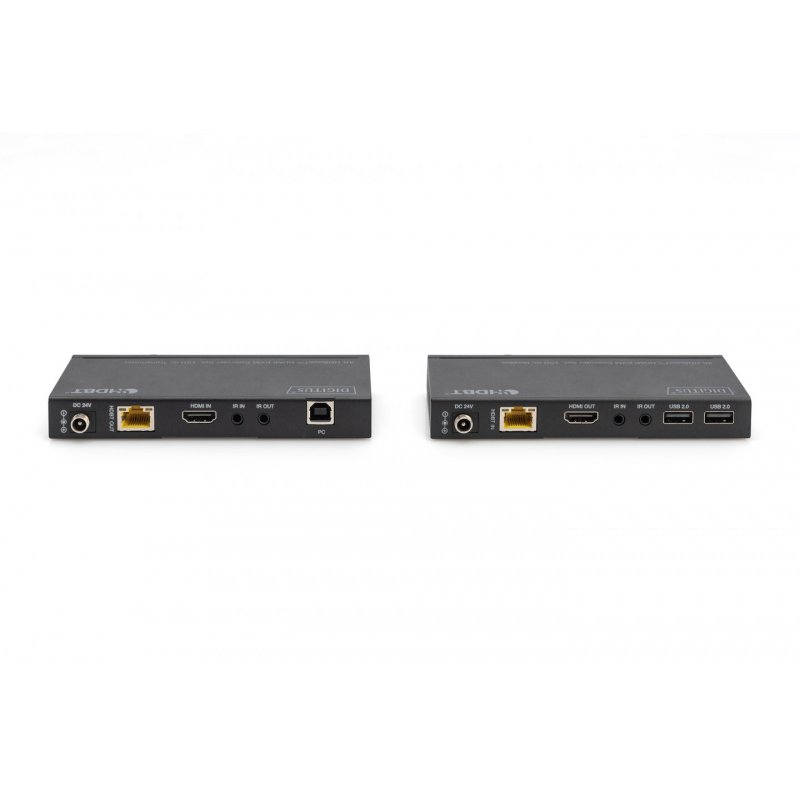

  • Transmitter unit connections:
  • 1x HDMI input (4K/60Hz) - Connection signal source
  • 1x RJ45 (HDBaseT™) output - Connection CAT transmission cable
  • 1x IR input to receive remote control signals
  • 1x IR output for control of the source device
  • 1x USB-B (2.0) - Connection of PC (signal source) for use of KVM function
  • 1x Power adapter input (DC 24V/1A), screw connector - Connection for external power adapter
  • 1x Micro USB input - Service/remote maintenance update
  • 1x EDID changeover switch
  • Receiver unit connections:
  • 1x HDMI output (4K/60Hz) - Connection output device
  • 1x RJ45 input - Connection CAT transmission cable
  • 2x USB-A (2.0) - Connection of webcam, data carrier, touch panel, mouse and keyboard, for example
  • Suitable for wall mounting
  • ESD protection
  • Operating temperature: 0-40°
  • Power consumption: approx. 13.2W
  • Housing: Metal
  • Dimensions (1 unit): L 6.5 x W 14 x H 1.8 cm
  • Weight: Transmitter 245 g / Receiver 249 g
  • Color: black

Data sheet

Colour
Black
Garantie
2 ans
Modèle
DS-55526
Weight
1

Specific References

ean13
4016032483724
