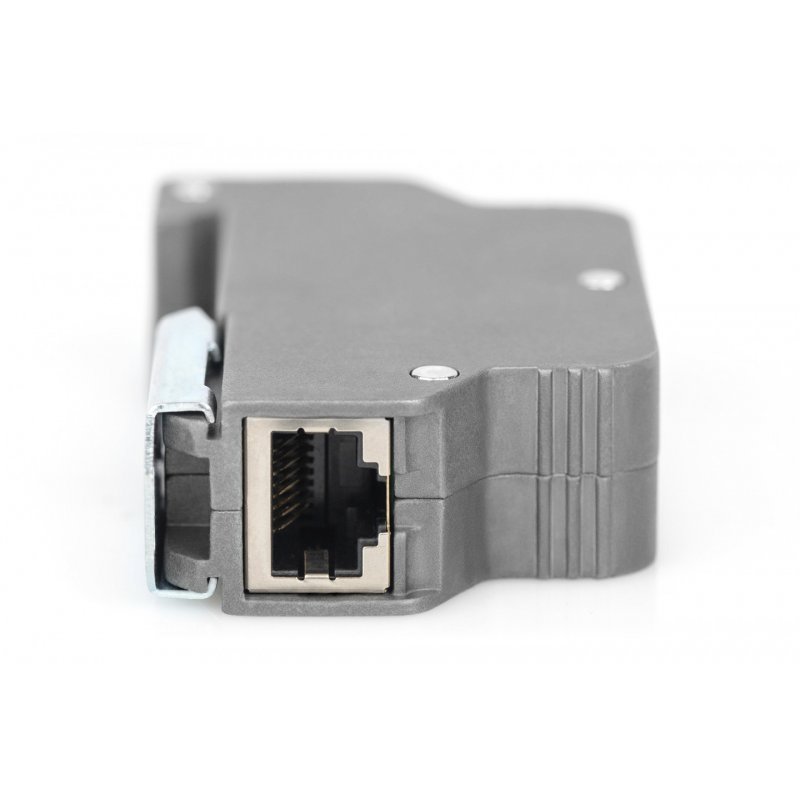

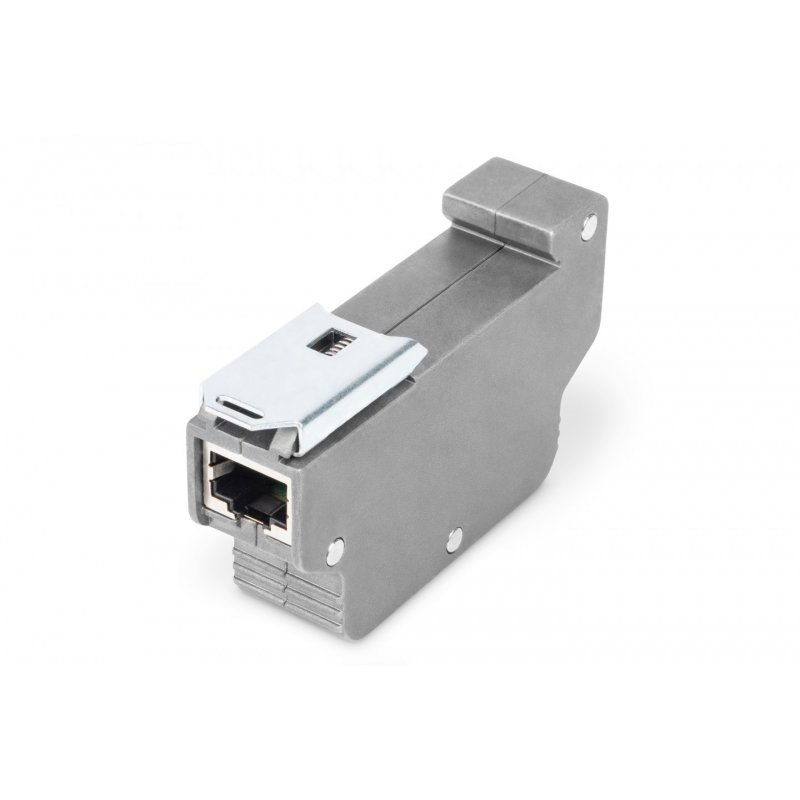

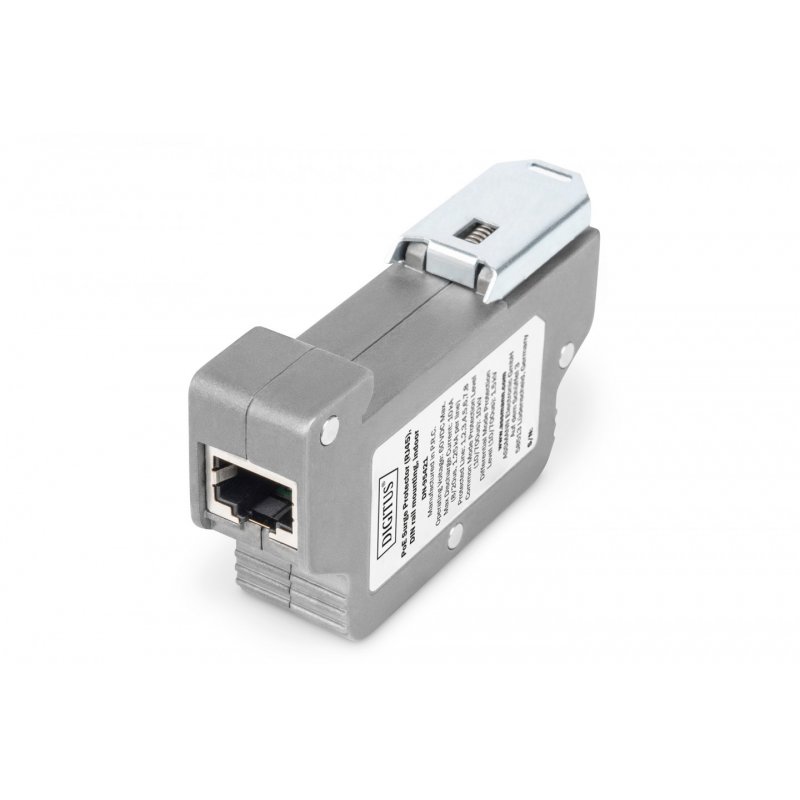

Digitus Digitus PoE surge protector (RJ45), DIN rail installation, indoor
Digitus PoE surge protector (RJ45), DIN rail installation, indoor, Grey, Zinc, IP40, China, 115 g, 19 mm
DN-95421
4016032473053
€54.90
VAT included
Description
Digitus PoE surge protector (RJ45), DIN rail installation, indoor. Product colour: Grey, Material: Zinc, International Protection (IP) code: IP40. Weight: 115 g, Width: 19 mm, Depth: 45 mm. Package width: 87 mm, Package depth: 55 mm, Package weight: 154 g
- Input port: 1 x RJ45, shielded
- Output port: 1 x RJ45, shielded
- Surge protection: Common mode: 10 kV / Differential mode: 1.5 kV
- Supported data transfer rates: 10/100/1000 Mbps (IEEE802.3, IEEE802.3u, IEEE802.3ab)
- Supported PoE standards: IEEE802.3af/at/bt
- Maximum voltage for PoE use: 60 VDC (120 watts max.)
- Leakage current: 10 kA (8/20 µs, 1.25 kA per core)
- Protected cores: 1-8
- Common mode protection level: (10/700 µs) 10 kV
- Differential mode protection level: (10/700 µs) 1.5 kV
- Insertion loss: -1 db
- Return loss: -20 db
- Reaction time: 5 ns
- Grounding provided via DIN rail
- Operating temperature: -40 °C to +85 °C
- Operating humidity: 20% - 80% RH (non-condensing)
- Operating height above sea level: 2000 m max.
- Housing: Zinc alloy
- Color: Gray

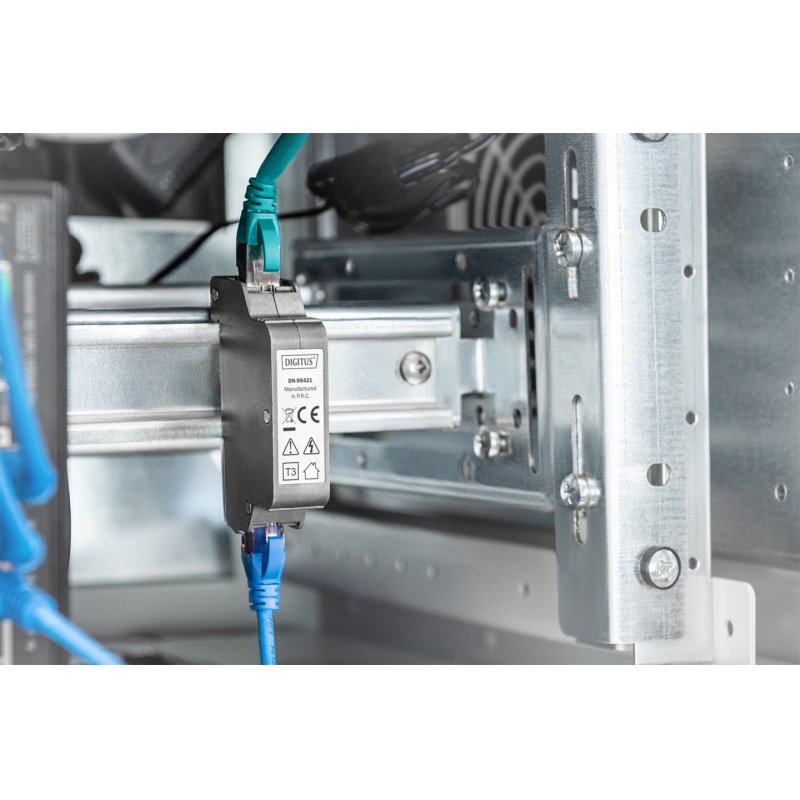

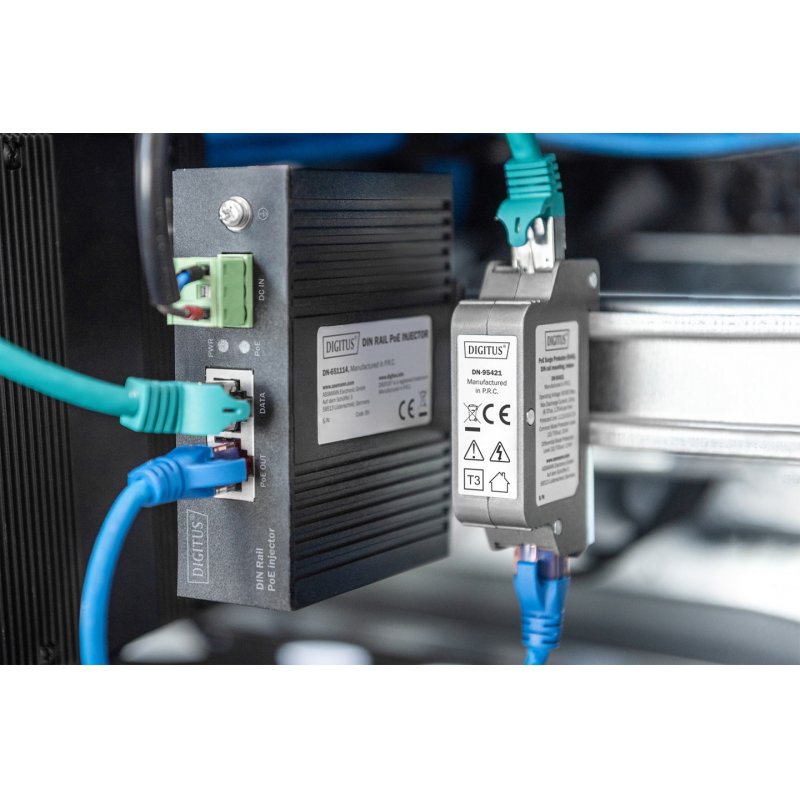

- Installation: DIN rail (35 mm profile rail)
- Protection type: IP40
- Dimensions: 77.2 x 45 x 19 mm (HxDxW)
- Weight: 115 g
- Manufacturer’s notice: For effective protection, the surge protector must be connected to a grounded conductor.
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Modèle
- DN-95421
- Weight
- 1
Specific References
- ean13
- 4016032473053
