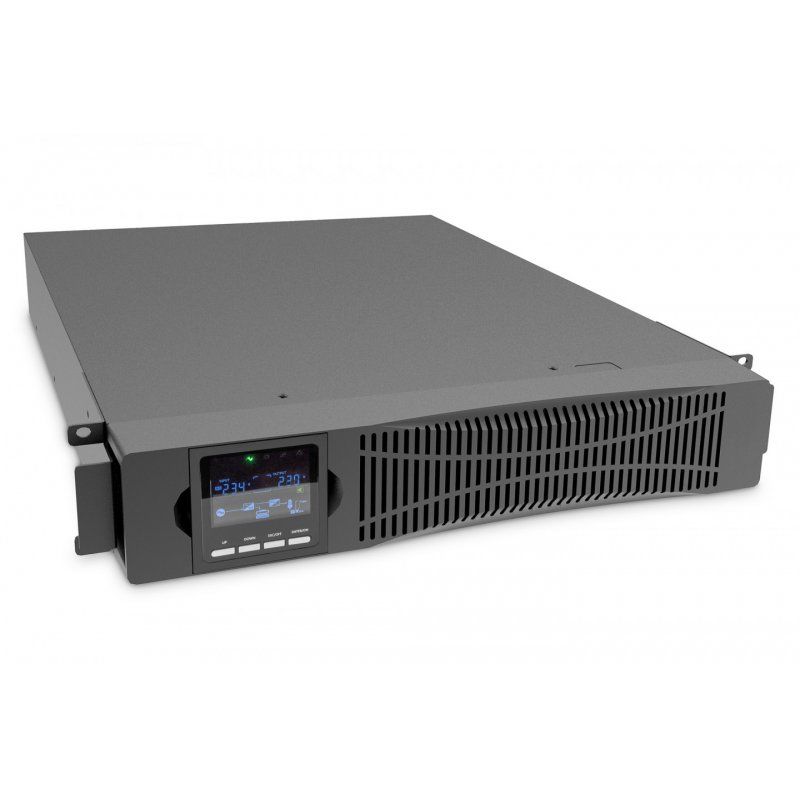

Digitus Digitus OnLine UPS system, 2000 VA / 2000 W

Digitus OnLine UPS system, 2000 VA / 2000 W, Double-conversion (Online), 1.5 kVA, 2000 W, 208 V, 240 V, 10 A
DN-170095
4016032474661
€1,014.90
VAT included

Visa
Mastercard
PayPal

Description

Digitus OnLine UPS system, 2000 VA / 2000 W. UPS topology: Double-conversion (Online), Output power capacity: 1.5 kVA, Output power: 2000 W. AC outlet types: C13 coupler, Power plug: C20 coupler, AC outlets quantity: 8 AC outlet(s). Battery capacity: 9 Ah, Battery voltage: 12 V, Battery recharge time (90%): 4 h. Form factor: Rackmount, Product colour: Black, Cooling type: Active. Width: 440 mm, Depth: 460 mm, Height: 86.5 mm
  • Online double conversion system (VFI-SS-111)

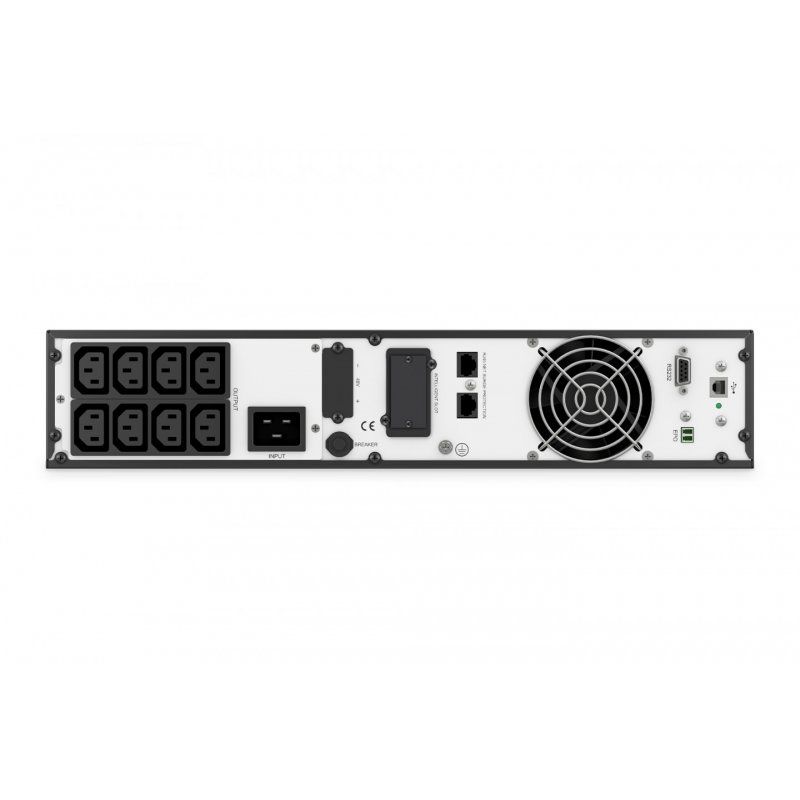

  • Input: socket IEC60320 C20, 208/220/230/240 Vac
  • Output: 8 x IEC60320 C13, max. 10A per socket
  • System power rating: 2000 VA / 2000 W, power factor 1.0
  • AC-AC (online VFI) efficiency: 93 %, ECO mode efficiency: 98 %.
  • Replaceable internal battery pack during operation.
  • Battery: valve-regulated, non-spillable lead-acid battery.
  • Battery capacity: 4 x 12V x 9.0 Ah
  • Charge: 4 hours to 90% capacity after fully discharged
  • Network connection: Optional SNMP/Webcard (part number DN-170100) allows remote monitoring of the UPS.
  • Local communication ports: USB, RS-232 (serial), SNMP card (optional), relay card (optional)
  • Emergency power-off (EPO) contact for UPS shutdown in case of emergency
  • Maximum operating temperature: 0 - 40 °C
  • Storage temperature: -25 - 55 °C
  • Relative humidity: 20 - 90% non-condensing
  • Operating altitude: < 1500 m

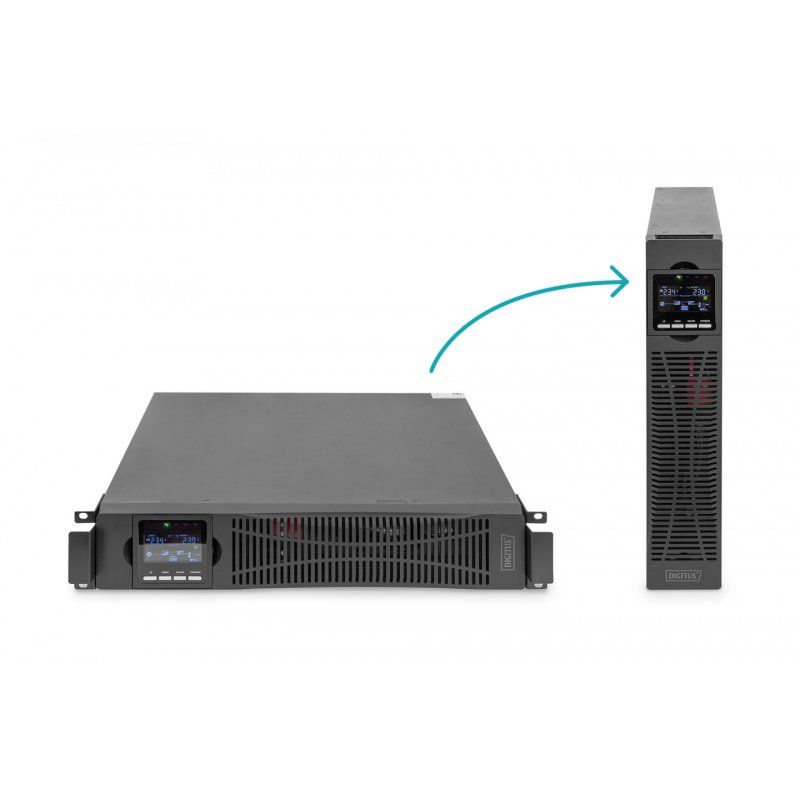

  • Product dimensions WxDxH (mm): 440 (19") x 460 x 86.5 (2U)
  • Product weight: 19,5 kg
  • Shipping dimensions WxDxH (mm): 560 x 590 x 200
  • Shipping weight: 23,7 kg
  • Safety standards: IEC/EN62040-1,IEC/EN60950-1
  • EMC standards: IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5,IEC61000-4-6,IEC61000-4-8
  • Optional available: 19" UPS mounting kit (profile rails), part number DN-170109

Data sheet

Colour
Black
Garantie
2 ans
Modèle
DN-170095
Weight
1

Specific References

ean13
4016032474661
