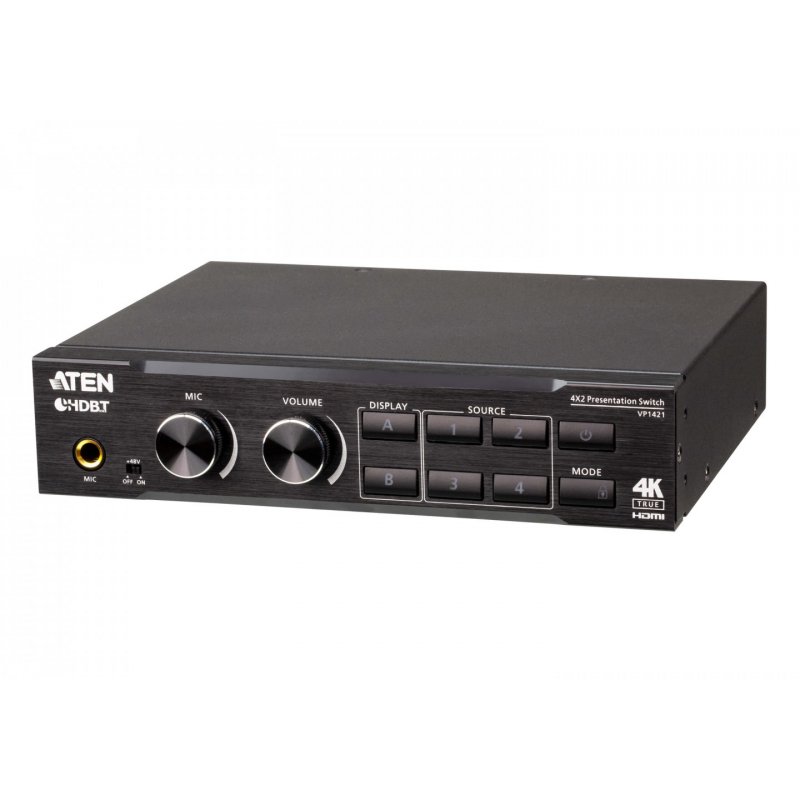

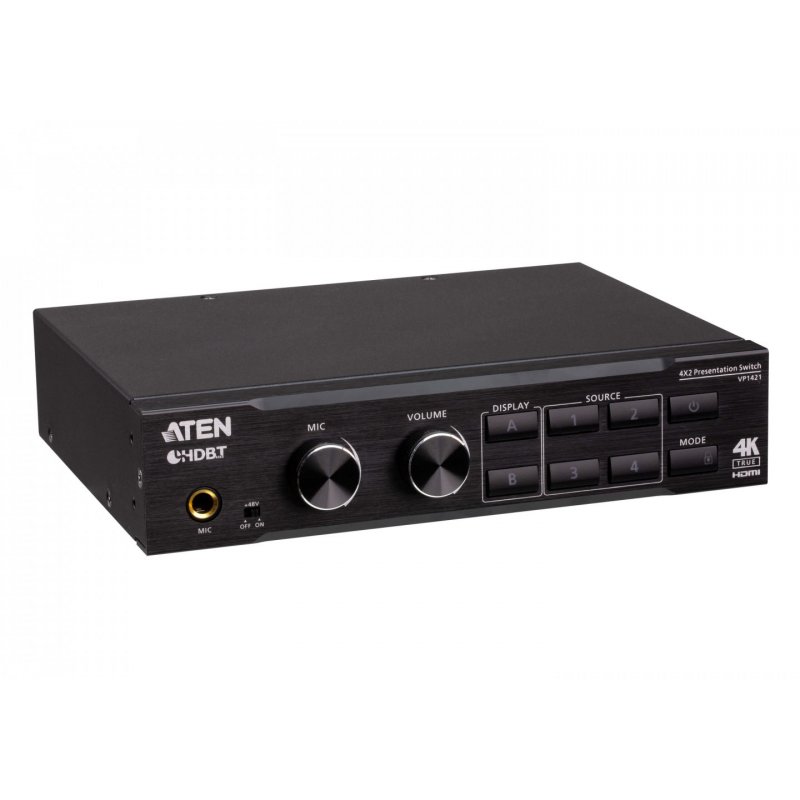

Aten ATEN 4 x 2 True 4K Presentation Matrix Switch
ATEN 4 x 2 True 4K Presentation Matrix Switch, Scaling matrix switcher, 4096 x 2160 pixels, Black, Metal, Buttons, Rotary, 14.93 W
VP1421-AT-G
4719264649158
€1,164.90
VAT included
Description
ATEN 4 x 2 True 4K Presentation Matrix Switch. Product type: Scaling matrix switcher, Maximum resolution: 4096 x 2160 pixels. Housing colour: Black, Housing material: Metal, Control type: Buttons, Rotary. Power consumption (typical): 14.93 W. Products per master (outer) case: 3 pc(s), Master (outer) case gross weight: 7.25 kg, Master (outer) case length: 427 mm. Width: 170.1 mm, Depth: 200 mm, Height: 44 mm

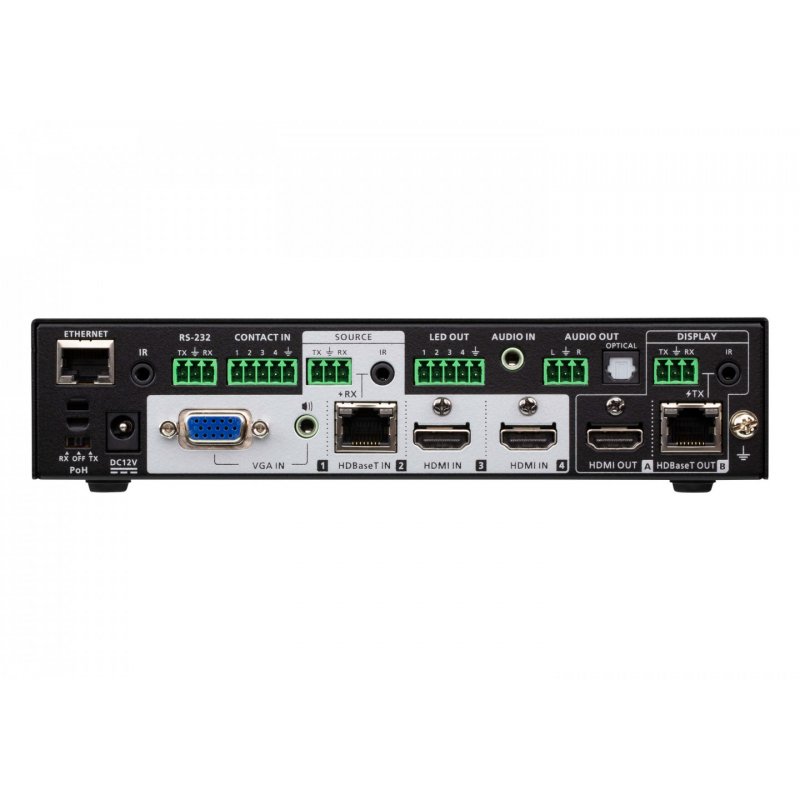

- Supports multi-format 4 Inputs – 2 HDMI, 1 HDBaseT, and 1 VGA inputs
- 1 HDMI and 1 HDBaseT outputs
- Audio embedding – stereo audio can be embedded into display output or separated to stereo line out and optical audio outputs
- Audio de-embedding – HDMI/HDBaseT audio can be extracted to stereo line out
- Built-in Audio DSP – supports microphone input with selectable 48V Phantom Power and allows microphone input to be mixed with program audio and embedded into display output
- Automatically reduces program audio when a microphone signal is detected
- Auto switching – automatically detects and switches to a new source as soon as it is connected
- Superior video quality – True 4K resolutions up to 4096 x 2160@60Hz (4:4:4) (HDMI) / 4096 x 2160@60Hz (4:2:0) (HDBaseT)
- Supports 4K HDR
- Scaler – supports video upscaling to 4K for display A and downscaling to 1080p for display B
- EDID Expert – automatically selects the optimum EDID settings for smooth power-up, high-quality display, and the best video resolution across connected devices
- HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant

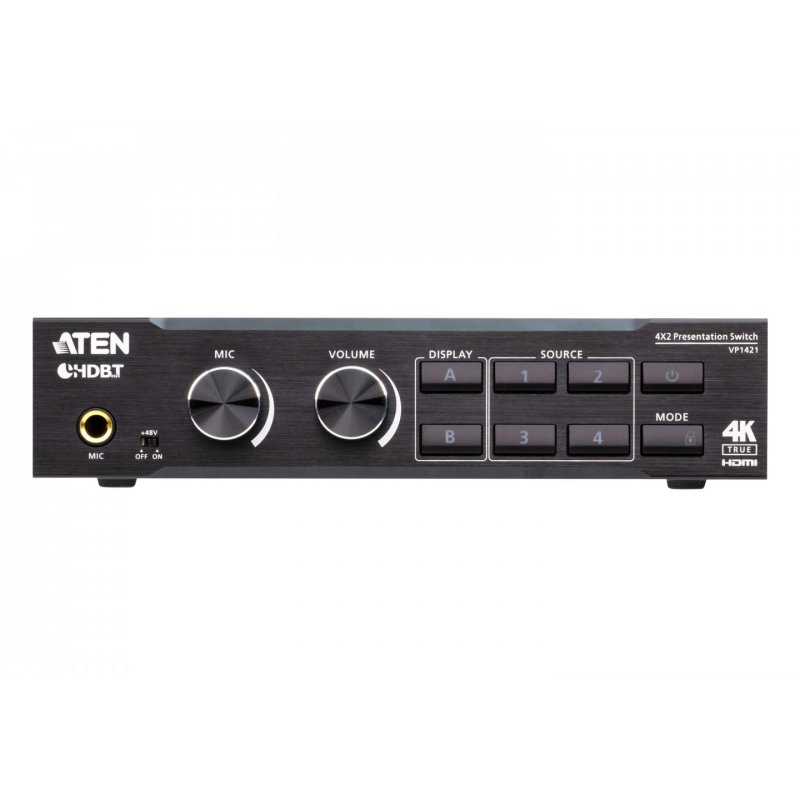

- Multiple control options – flexible control via front-panel pushbuttons, IR remote control, RS-232, and web-based GUI through Ethernet
- View and control via ATEN Video Presentation Control App in a swift and agile way
- Bi-directional RS-232 and IR channel – allows AV device control over HDBaseT connection without additional cabling
- Supports stand-by mode for power saving and fast waking up
- Consumer Electronics Control (CEC) support
- Built-in Contact in and LED out for keypad control using VPK104 Contact Closure Remote Pad
- Long-distance transmission – transmit digital AV signal, bi-directional RS-232, and IR control signals up to 140m via Cat 6/6a or ATEN 2L-2910 Cat 6 cables
- Power over HDBaseT (POH) – remote powering over existing communication cable with selectable powering device
- Note: This is achieved using both the HDBaseT In and the HDBaseT Out ports on the VP1421, each extending the transmission up to 70m
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Aten
Specific References
- ean13
- 4719264649158
