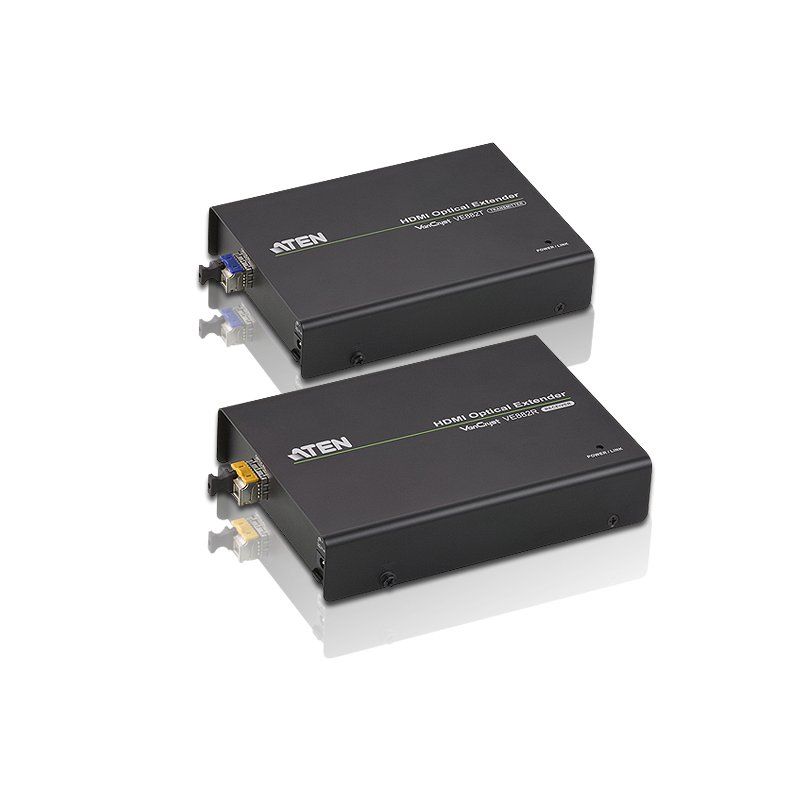

Aten ATEN HDMI Audio/Video Extender + IR + RS232 over one Fiber (600m)
ATEN HDMI Audio/Video Extender + IR + RS232 over one Fiber (600m), 1920 x 1080 pixels, AV transmitter & receiver, 600 m, Wired, 3D, HDCP
VE882-AT-G
4710423778177
€1,025.90
VAT included
Description

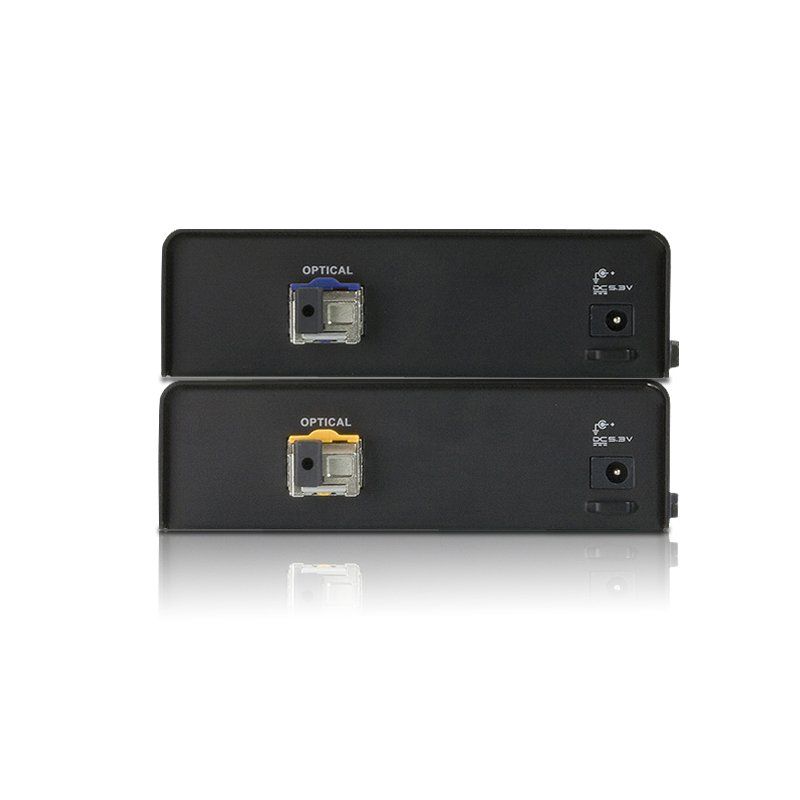

ATEN HDMI Audio/Video Extender + IR + RS232 over one Fiber (600m). Type: AV transmitter & receiver, Maximum resolution: 1920 x 1080 pixels, Maximum transfer distance: 600 m. Connectivity technology: Wired, Fiber optic connector: SFP. Operating voltage (transmitter): 5.3 V, Operating voltage (receiver): 5.3 V, Power consumption (TX): 5.8 W. Weight: 1.43 kg, Receiver dimensions (WxDxH): 141.7 x 103 x 30 mm, Receiver weight: 440 g. Package width: 100 mm, Package depth: 283 mm, Package height: 173 mm
- Extends the transmission range of HDMI, IR and RS-232 signals using one fiber optic cable
- Very long distance transmission – up to 600m
- HDMI (3D, Deep Color), HDCP compatible – signaling rates up to 3.125 Gbits
- Superior video quality – up to 1080p@60Hz
- Supports full frequency IR signal from 30KHz to 60KHz
- (The IR receiver cable included with the package only supports 30 KHz to 56 KHz)
- Uses one fiber optic cable to connect the local and remote units
- Supports wide screen formats
- Built-in 8KV/15KV ESD protection

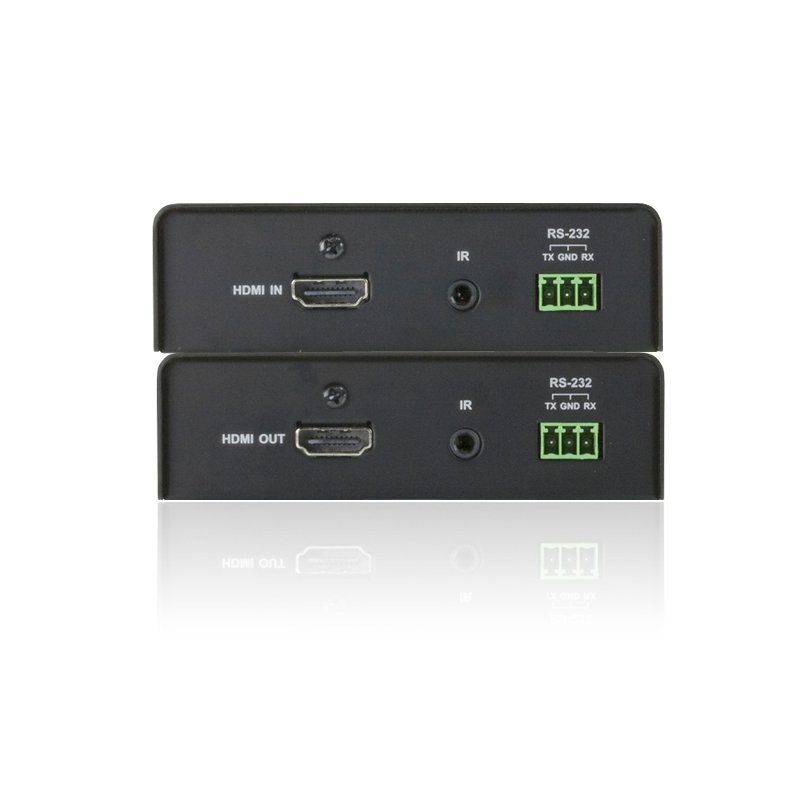

- Features RS-232 serial port for connecting peripherals such as touch screens, barcode scanners, etc
- Supports bi-directional IR signal transmission, one way at a time
- Rack-mountable
- Hot-pluggable
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Aten
Specific References
- ean13
- 4710423778177
