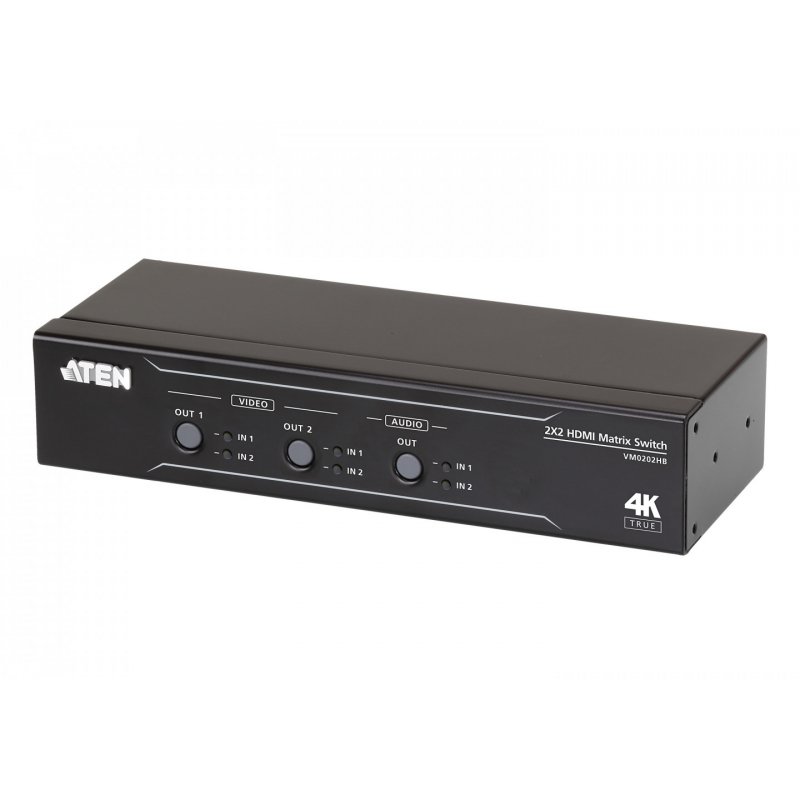

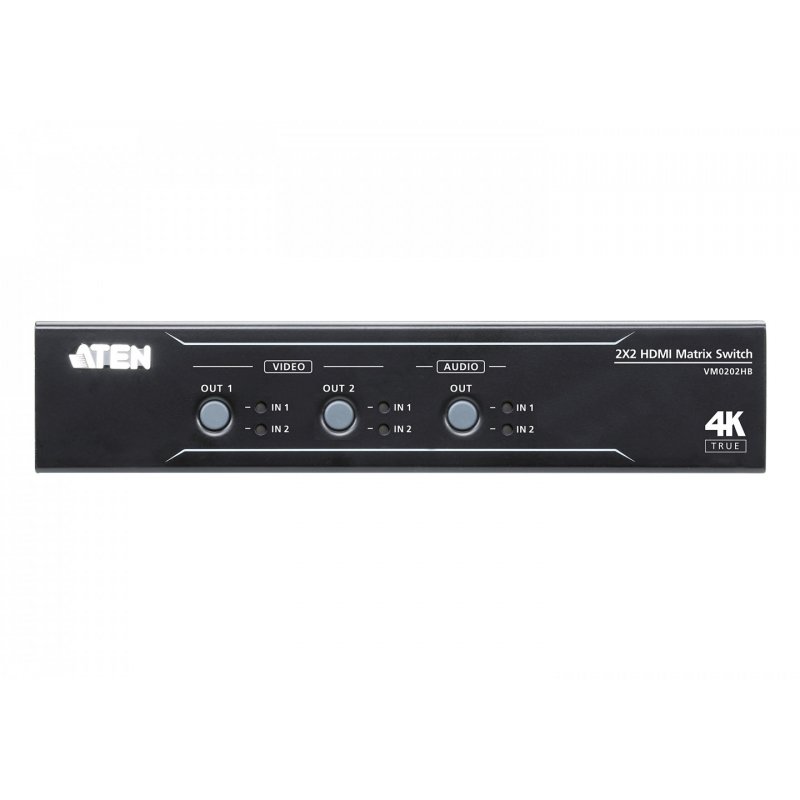

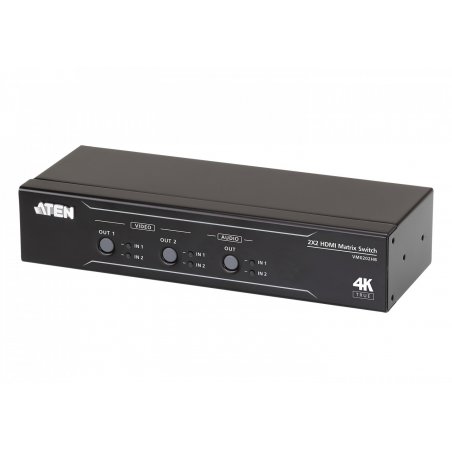

Aten ATEN 2 x 2 True 4K HDMI Matrix Switch with Audio De-Embedder
ATEN 2 x 2 True 4K HDMI Matrix Switch with Audio De-Embedder, AV matrix switcher, 18 Gbit/s, 600 MHz, 4096 x 2160 pixels, 4096 x 2160, 3840 x 2160, Black
VM0202HB-AT-G
4710469340024
€229.90
VAT included
Description
ATEN 2 x 2 True 4K HDMI Matrix Switch with Audio De-Embedder. Product type: AV matrix switcher, Data transfer rate: 18 Gbit/s, Maximum pixel clock: 600 MHz. Housing colour: Black, Housing material: Metal, Control type: Buttons. USB connector type: Micro-USB. Power consumption (typical): 2.47 W. Products per master (outer) case: 5 pc(s), Master (outer) case gross weight: 5.25 kg, Master (outer) case length: 325 mm
- Connects 2 HDMI sources to any 2 HDMI displays
- Max. Data Rate 18.0 Gbps (6.0 Gbps Per Lane)
- Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and HDR
- Audio de-embedder – HDMI audio can be extracted to stereo or Lineout audio
- Supports Dolby True HD and DTS HD Master Audio
- Auto switching – automatically detects and switches to a new source once connected (Default: off)
- Multiple Control Methods – system management via front-panel pushbuttons, IR remote, and RS-232 serial control
- Long-distance transmission up to 5 meters
- HDMI (3D, 4K, Deep Color); HDCP 2.2 Compatible
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
- EDID Expert – selects optimum EDID settings for smooth power-up,high-quality display and use of the best video resolution across different screens
- Supports ATEN’s Lock Pro HDMI cable lock for secure HDMI cable connections
- All metal casing
- Firmware upgradable
- Rack mountable
Data sheet
- Colour
- Black
- Garantie
- 2 ans
Specific References
- ean13
- 4710469340024
