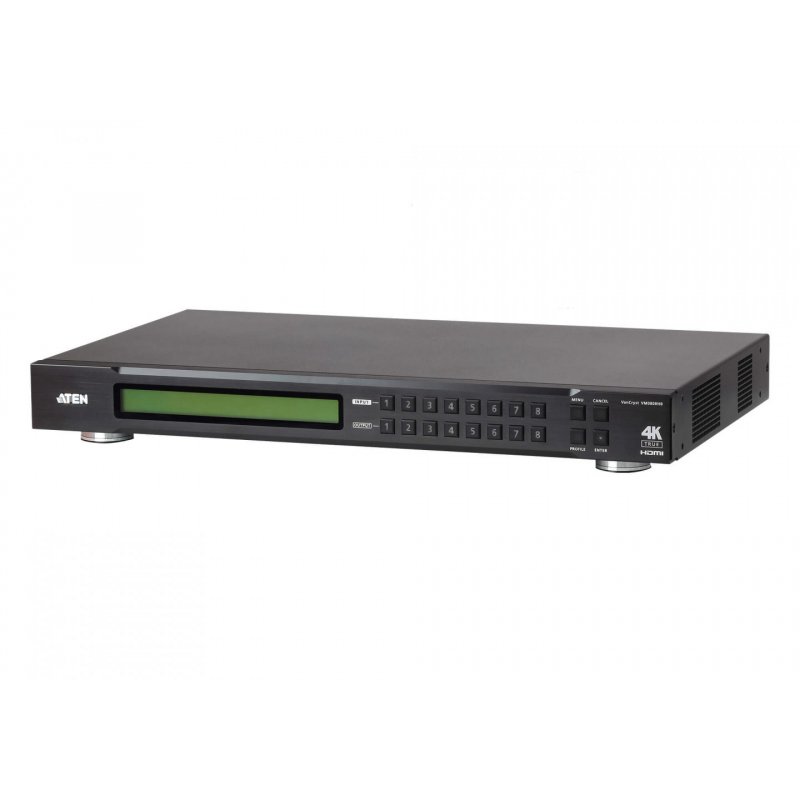

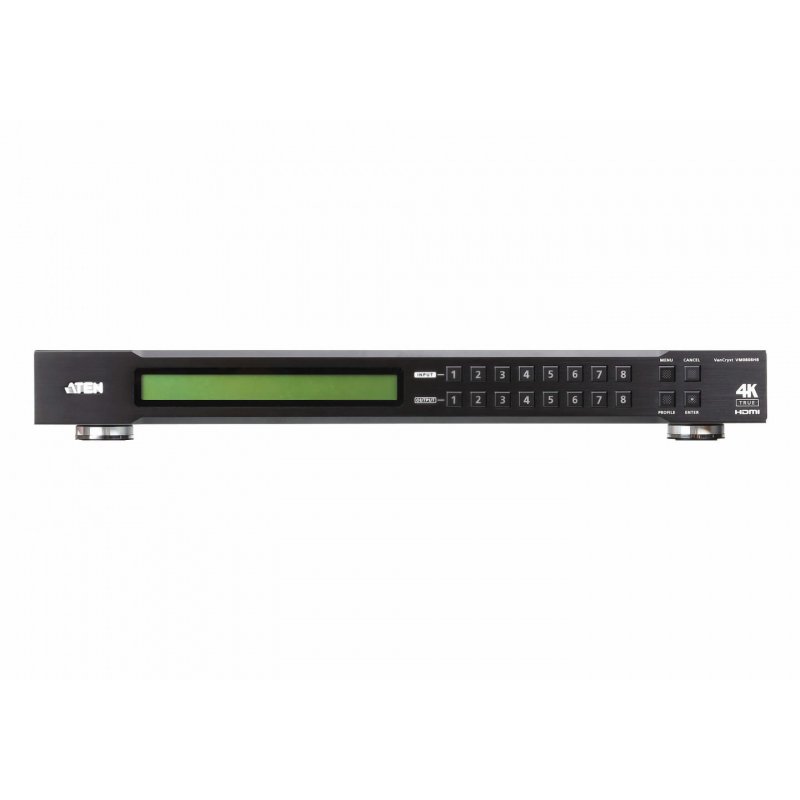

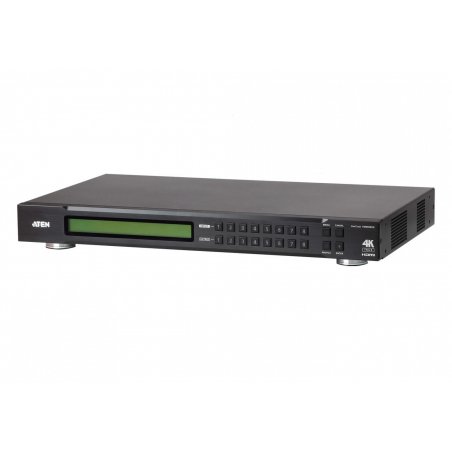

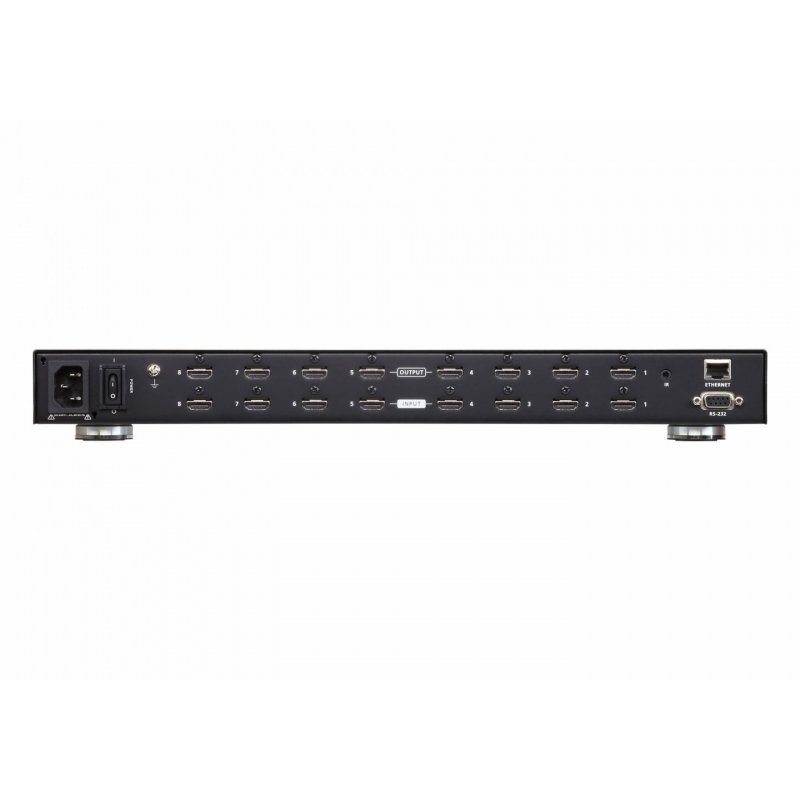

Aten ATEN 8X8 True 4K HDMI Martrix Switch
ATEN 8X8 True 4K HDMI Martrix Switch, AV matrix switcher, 18 Gbit/s, 600 MHz, 4096 x 2160 pixels, 4096 x 2160, 3840 x 2160, 1920 x 1200, Black
VM0808HB-AT-G
4719264646836
€1,373.90
VAT included
Description
ATEN 8X8 True 4K HDMI Martrix Switch. Product type: AV matrix switcher, Data transfer rate: 18 Gbit/s, Maximum pixel clock: 600 MHz. Housing colour: Black, Housing material: Metal, Rack capacity: 1U. Power consumption (max): 38.1 W, Power consumption (typical): 37.8 W, AC input voltage: 100-240 V. Products per master (outer) case: 1 pc(s), Master (outer) case gross weight: 5.63 kg, Master (outer) case length: 515 mm. Width: 432.4 mm, Depth: 262.3 mm, Height: 44 mm
- Connects any of 8 HDMI sources to any of 8 HDMI displays
- Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4)
- Supports HDR10+
- Multiple Control Methods – system management via front-panel pushbuttons, IR remote, RS-232 control, and Web GUI/Telnet via Ethernet connections
- View and control via ATEN Video Matrix Control App in a swift and agile way
- EDID Expert – selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
- Signaling rates up to 6 Gbits for flawless true 4K output
- Supports Dolby True HD and DTS HD Master audio
- HDMI (3D, Deep Color, 4K) and HDCP 2.2 compatible
- Supports Consumer Electronics Control (CEC)
- Power-on Detection – switches to the next powered-on source when one source is powered off
- ESD protection for HDMI
- Supports ATEN’s LockPro HDMI cable lock for secure HDMI cable connections
- Firmware upgradeable
- Rack mountable (1U design)
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Aten
Specific References
- ean13
- 4719264646836
